AI Camera Module
AI · SKU TP-C01
A camera with its own ESP32-S3 brain – colour tracking, motion detection and Wi-Fi video for TinkerPie.
₹499
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit

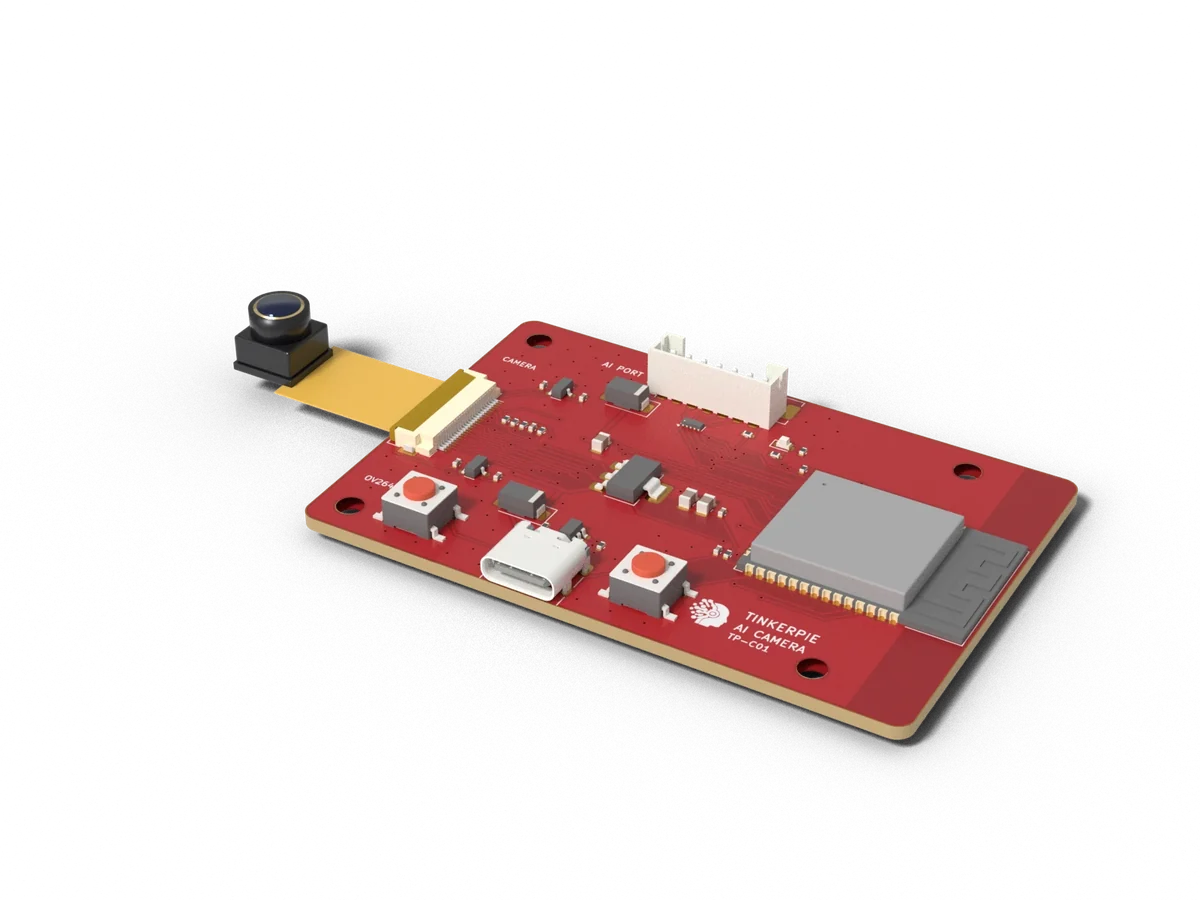

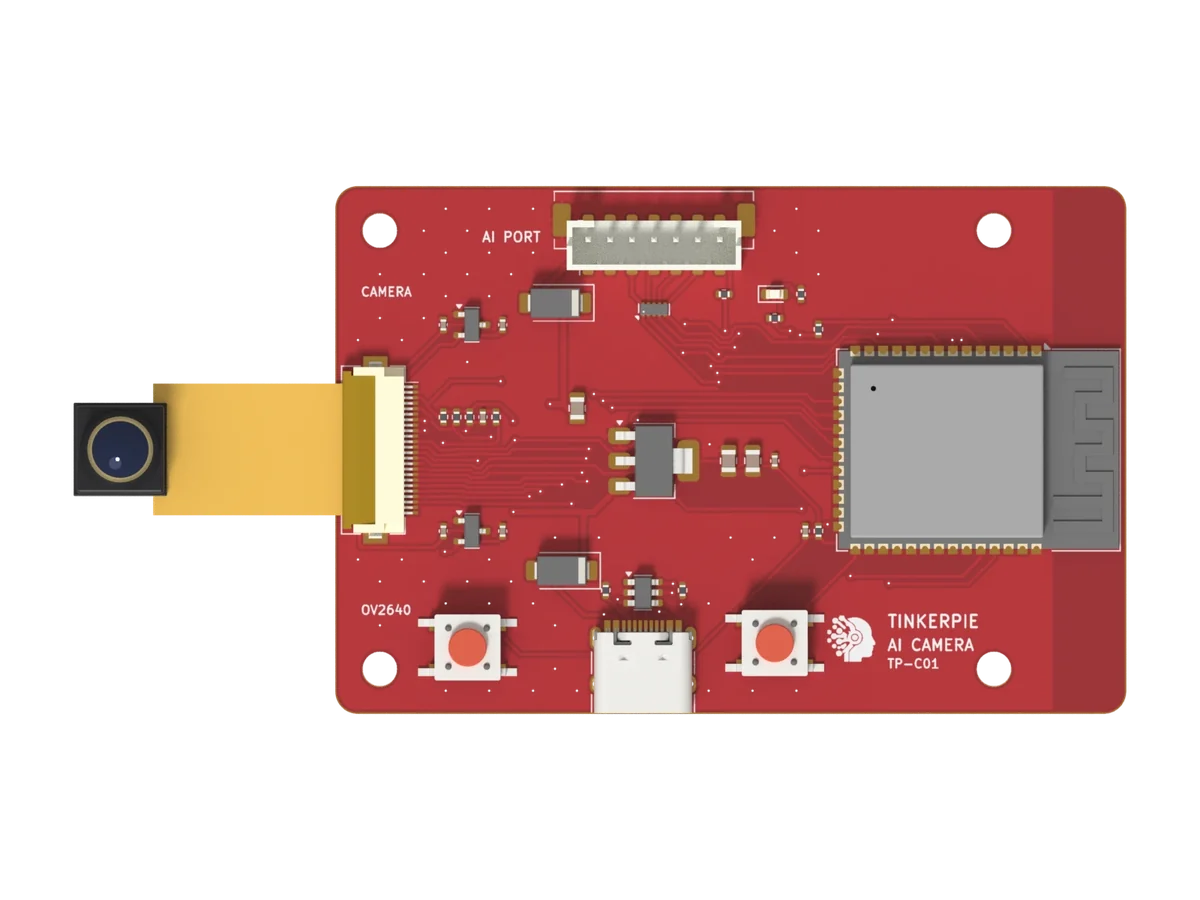

The AI Camera Module is a camera with its own ESP32-S3 processor and an OV2640 2 MP camera. It does colour tracking and motion detection on the module and sends the object's position and size to TinkerPie, and it can stream live video over its own Wi-Fi access point. It plugs into the TinkerPie AI / CAMERA port with one cable and is updated over USB-C.
Features
- ESP32-S3 (16 MB flash, 8 MB PSRAM) + OV2640 2 MP camera
- Colour tracking: sends object position and size to the board
- Motion detection mode
- Wi-Fi live video stream (own access point)
- Plugs into the TinkerPie AI / CAMERA port - one cable
- USB-C for updates, BOOT and RESET buttons
Specifications
| Size | 72 x 48 mm |
|---|---|
| Camera | OV2640, 24-pin FPC |
| Processor | ESP32-S3-WROOM-1-N16R8 |
| Interface | UART + INT (AI / CAMERA port), USB-C |
| Power | 5 V from the port, about 250 mA |
