Line Follower 5
Smart Bricks · SKU TP-B02
Five IR sensors in one bar – build a fast line-following robot in minutes.
₹499
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit
Line Follower 5 is a bar of five reflective IR sensors for line-following robots. It gives the position of the line directly, as a number from -100 (left) to +100 (right), works on black or white lines after a one-line calibration, and shows on five red LEDs which sensor sees the line. Two bars can be used on one robot.
Features

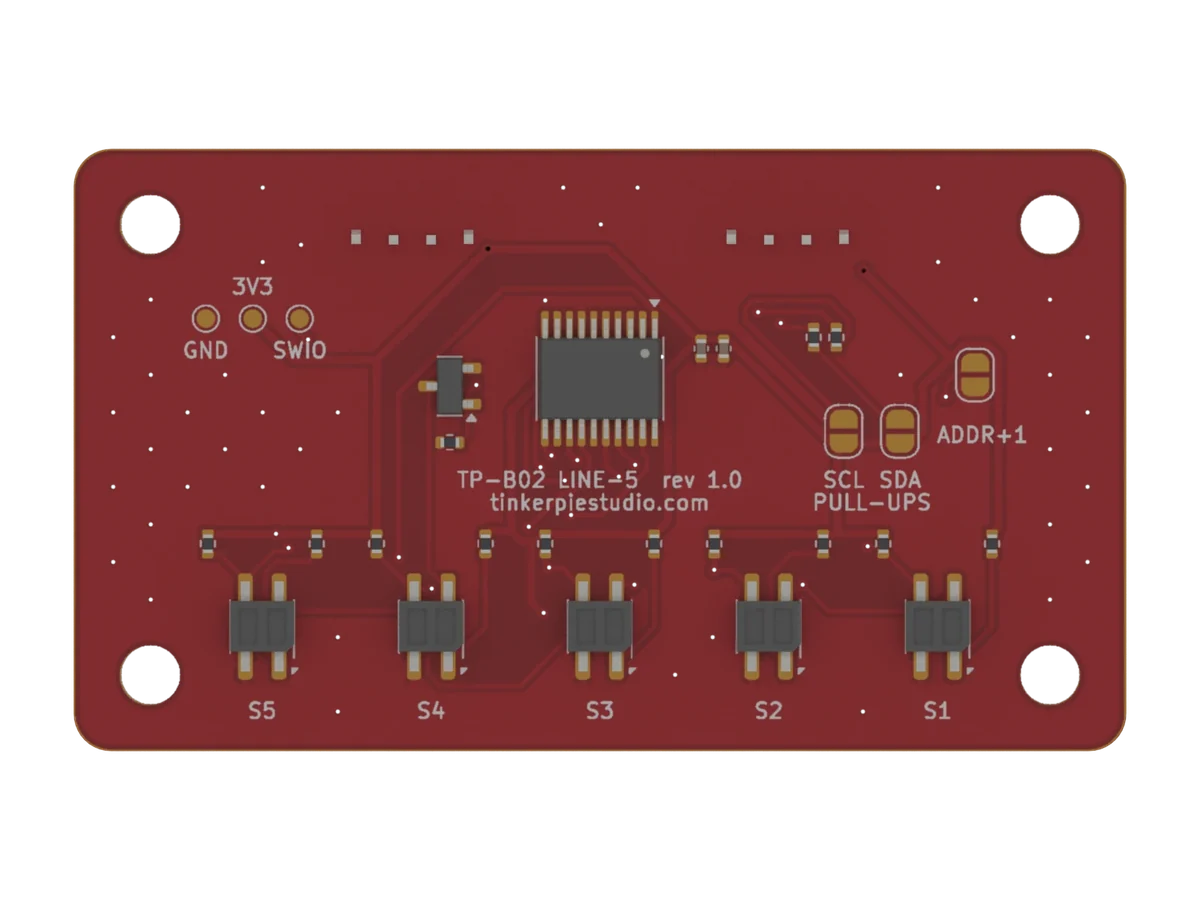

- 5 reflective IR sensors (QRE1113) with ambient-light cancelling
- Gives the line position directly: -100 (left) to +100 (right)
- Quick calibration for any floor (one function call)

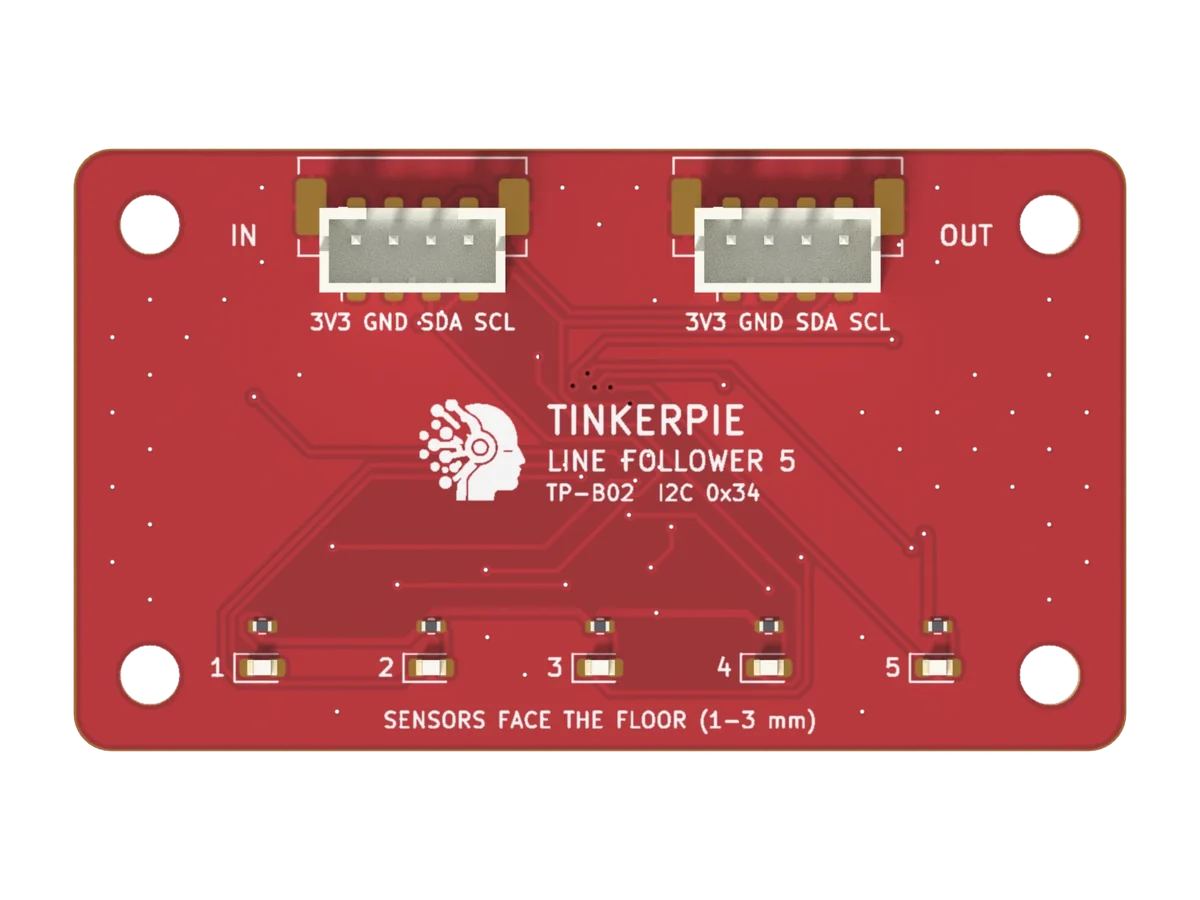

- 5 red LEDs on top show which sensor sees the line
- Black or white line
- I2C 0x34 / 0x35 - two bars on one robot
Specifications
| Size | 56 x 32 mm |
|---|---|
| Sensing height | 1-3 mm above the floor |
| Voltage | 3.3 V |
| Interface | I2C 0x34-0x35 |
| Brain | CH32V003 |
