IO-4 Smart Brick
Smart Bricks · SKU TP-B01
Connect any analog or digital sensor to TinkerPie – 4 ports, each analog, digital or PWM.
₹499
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit

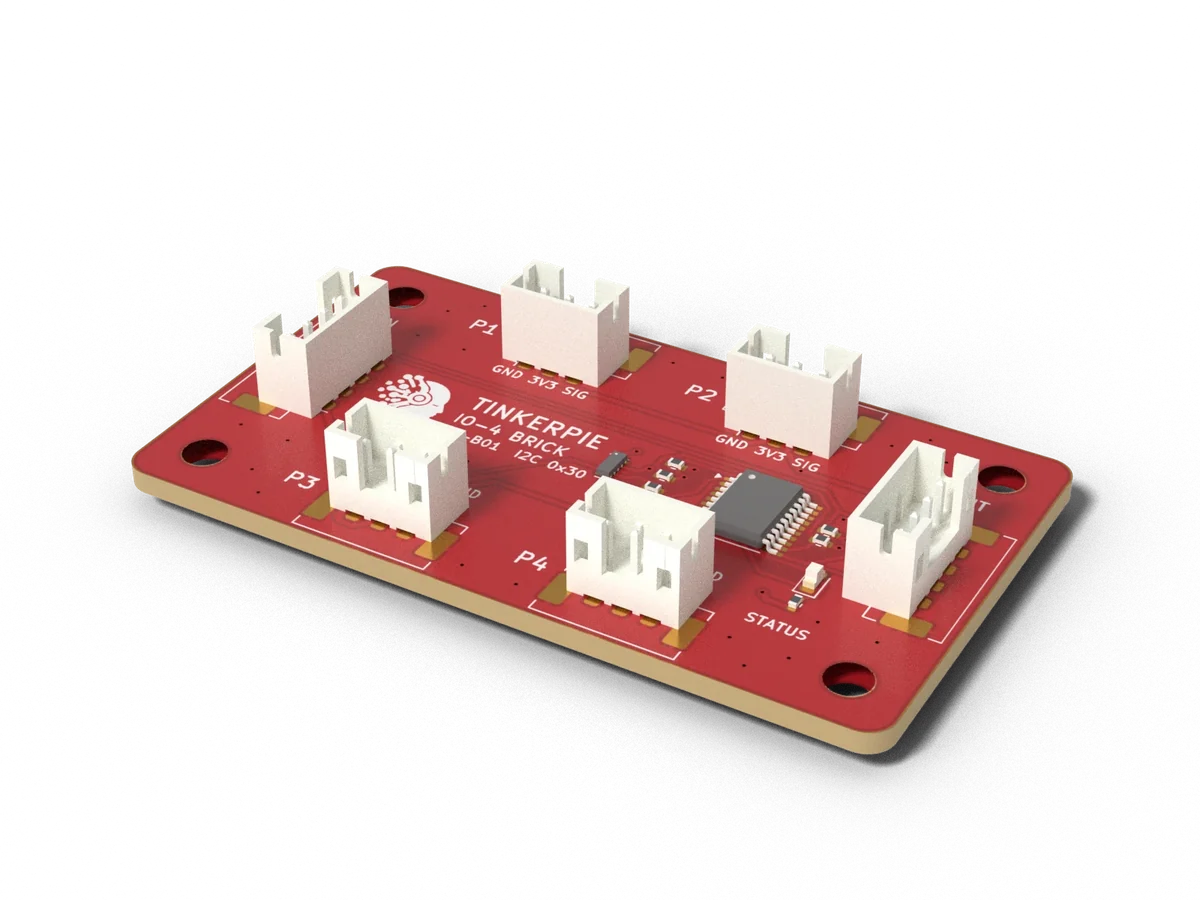

The IO-4 Smart Brick adds four extra ports to TinkerPie. Each port (P1-P4) can be an analog input, a digital input or output, or a PWM output, chosen in your code, so the same brick reads soil-moisture, LDR or PIR sensors and drives LEDs, buzzers and relays. It connects to a TinkerPie SENSOR port with one cable, TinkerPie finds it automatically, and up to four IO-4 bricks can be chained.
Features

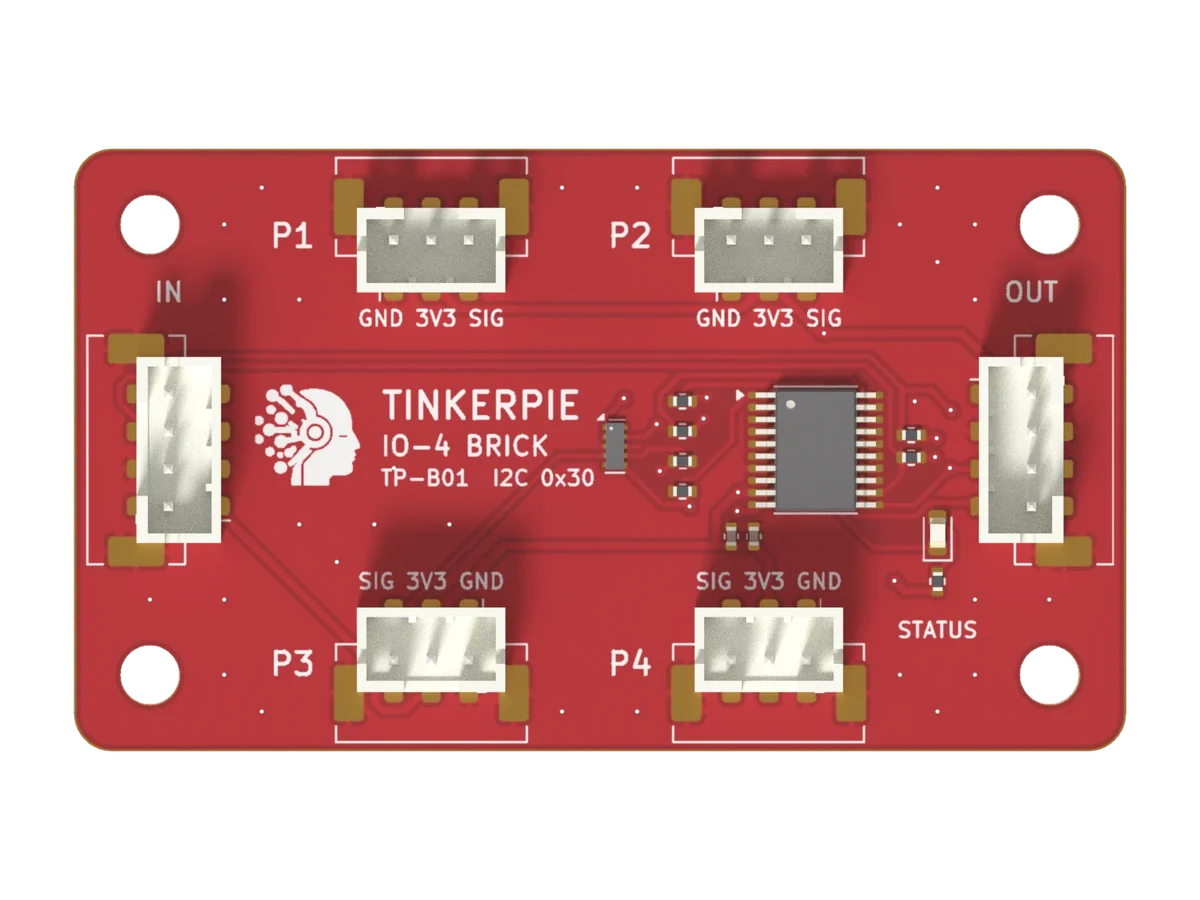

- 4 ports (P1-P4): analog in, digital in/out or PWM out - chosen in code
- Works with soil, LDR, potentiometer, rain, water-level, IR, PIR, touch, flame sensors and LEDs, buzzers, relays
- Plug-and-play: TinkerPie finds it automatically (I2C 0x30, up to 4 bricks)
- ESD protection and series resistors on every port
- BUS IN + BUS OUT sockets for daisy-chaining
- Blue status light
Specifications
| Size | 56 x 32 mm |
|---|---|
| Connectors | 2 x JST-PH 4-pin (TP-BUS), 4 x JST-PH 3-pin (TP-IO) |
| Voltage | 3.3 V |
| Interface | I2C 0x30-0x33 |
| Brain | CH32V003 |
More TinkerPie Bricks

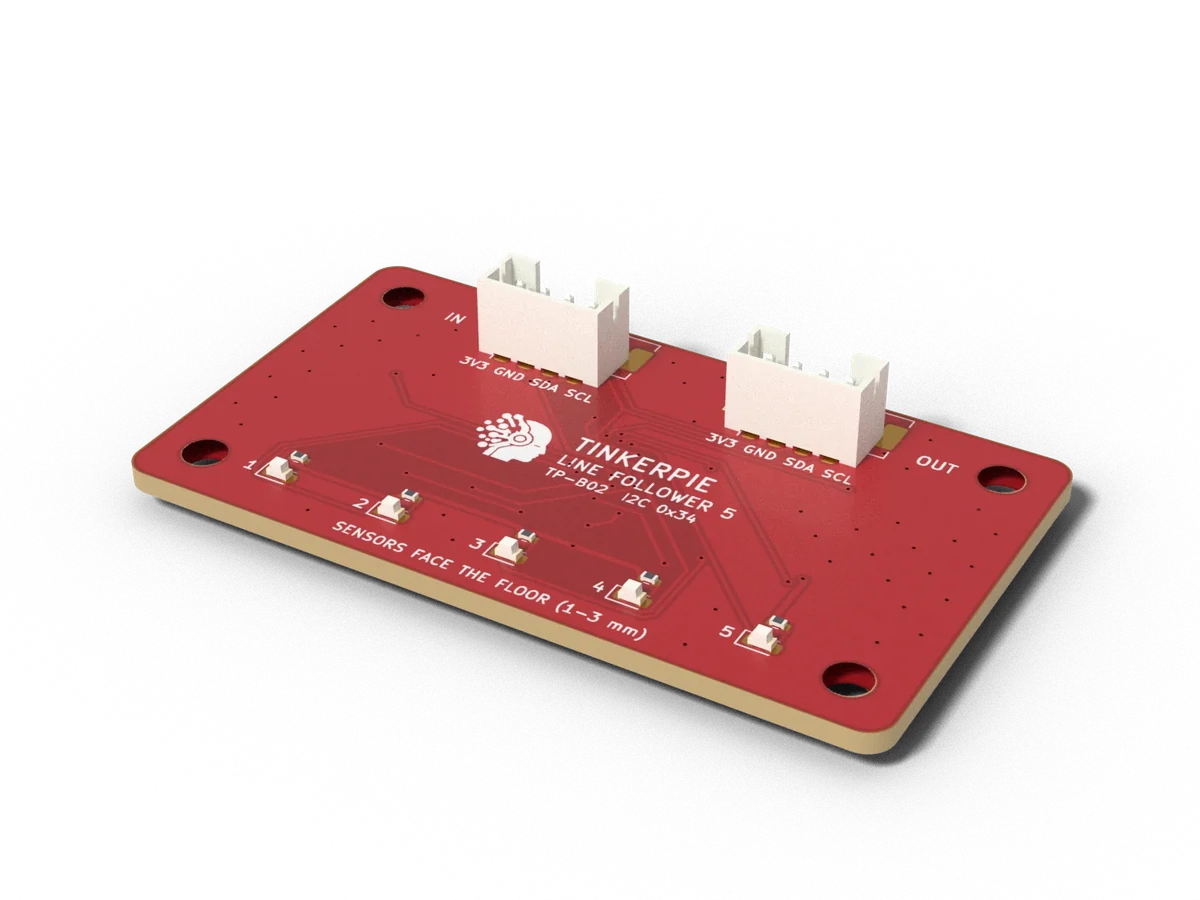

Line Follower 5TP-B02Five IR sensors in one bar – build a fast line-following robot in minutes.₹499Available to order

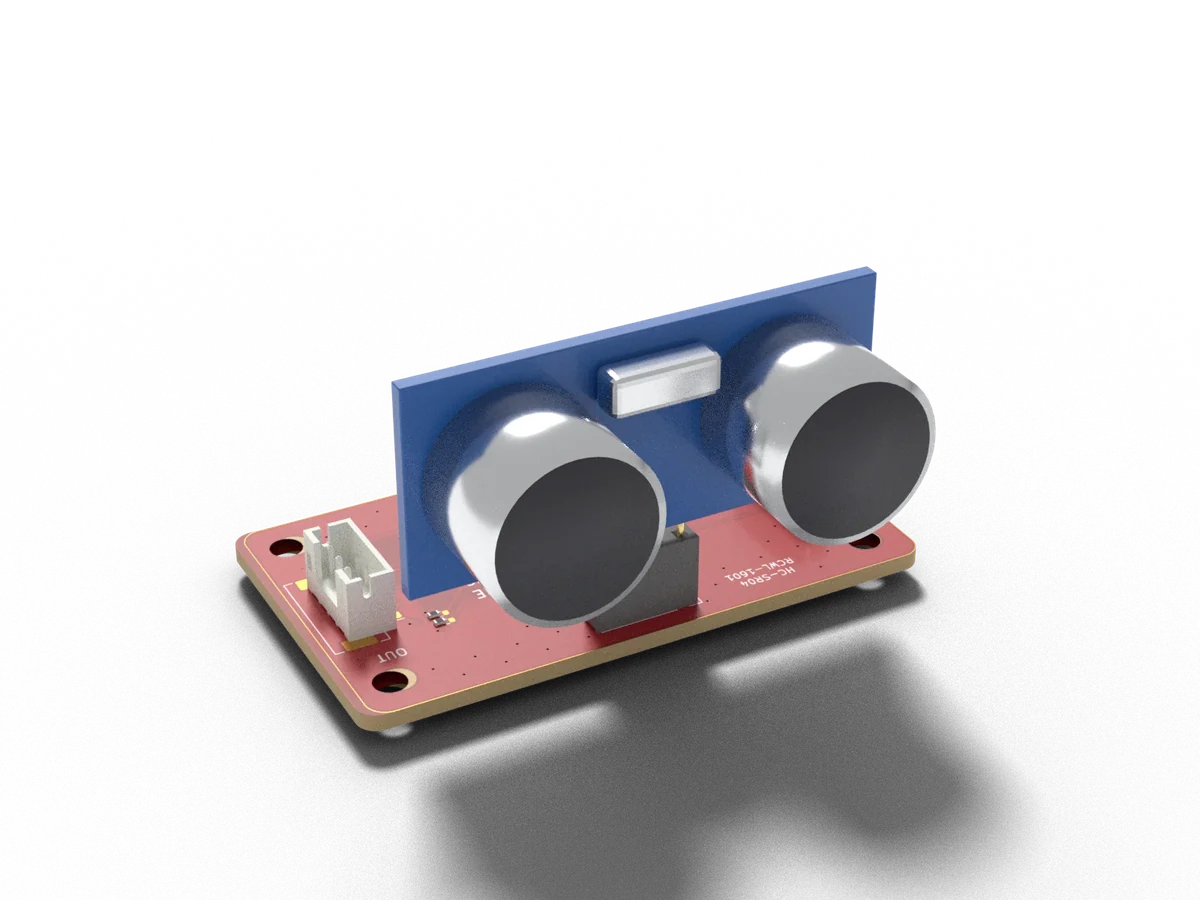

Ultrasonic BrickTP-B03HC-SR04 distance sensor made safe and simple – distance in mm over one cable.₹499Available to order

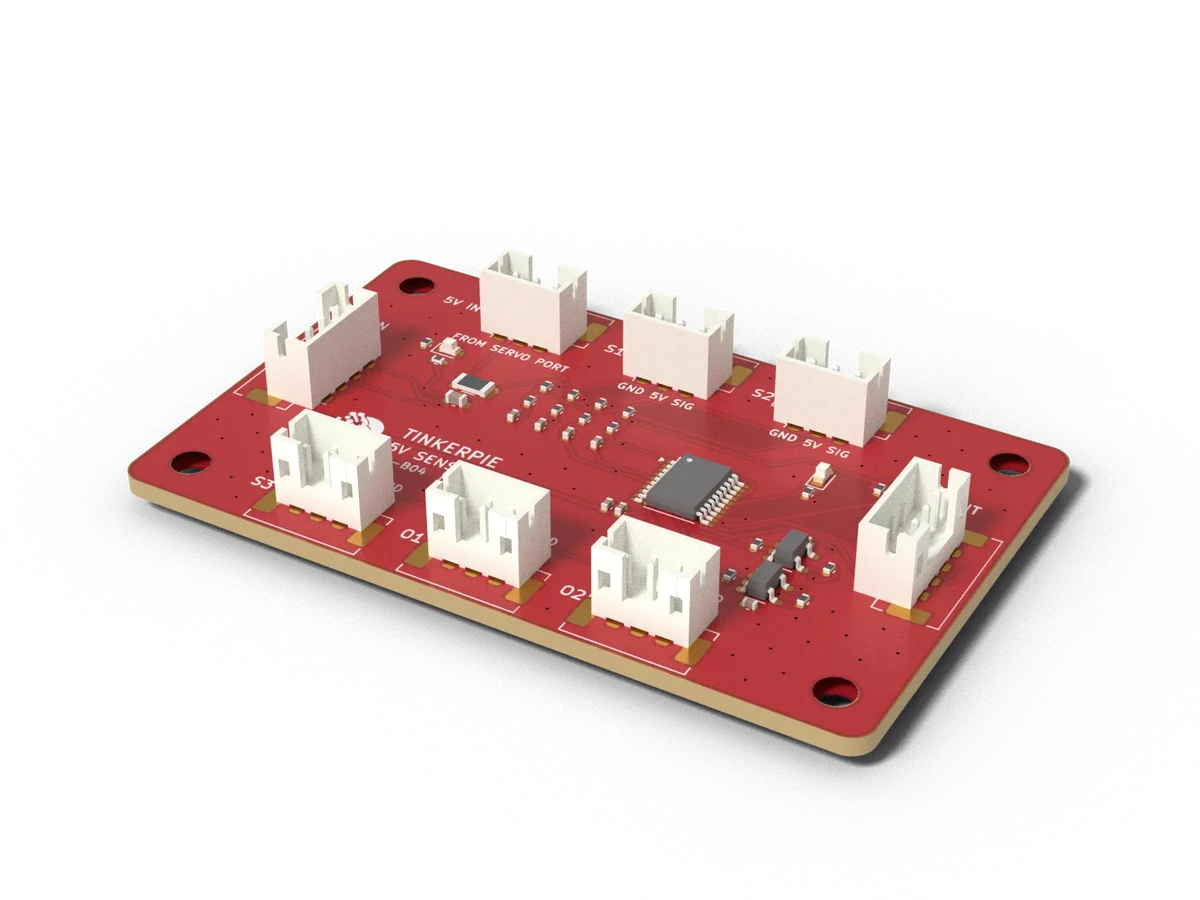

5V Sensor BrickTP-B04For the 5 V parts: gas sensors, 5 V PIR, relays and fans – powered from a servo port.₹499Available to order

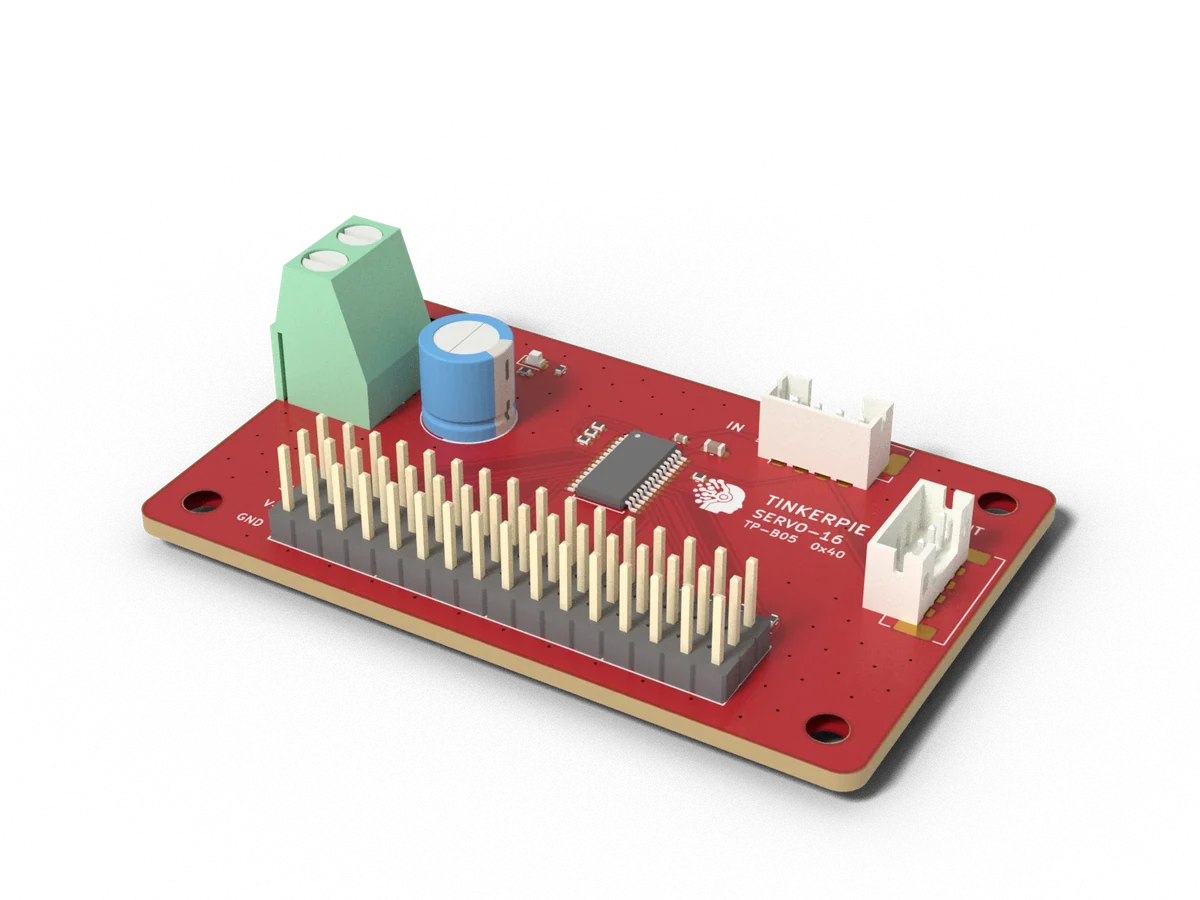

Servo-16 BrickTP-B05Drive 16 servos for robot arms, legs and animatronics.₹499Available to order
