5V Sensor Brick
Smart Bricks · SKU TP-B04
For the 5 V parts: gas sensors, 5 V PIR, relays and fans – powered from a servo port.
₹499
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit

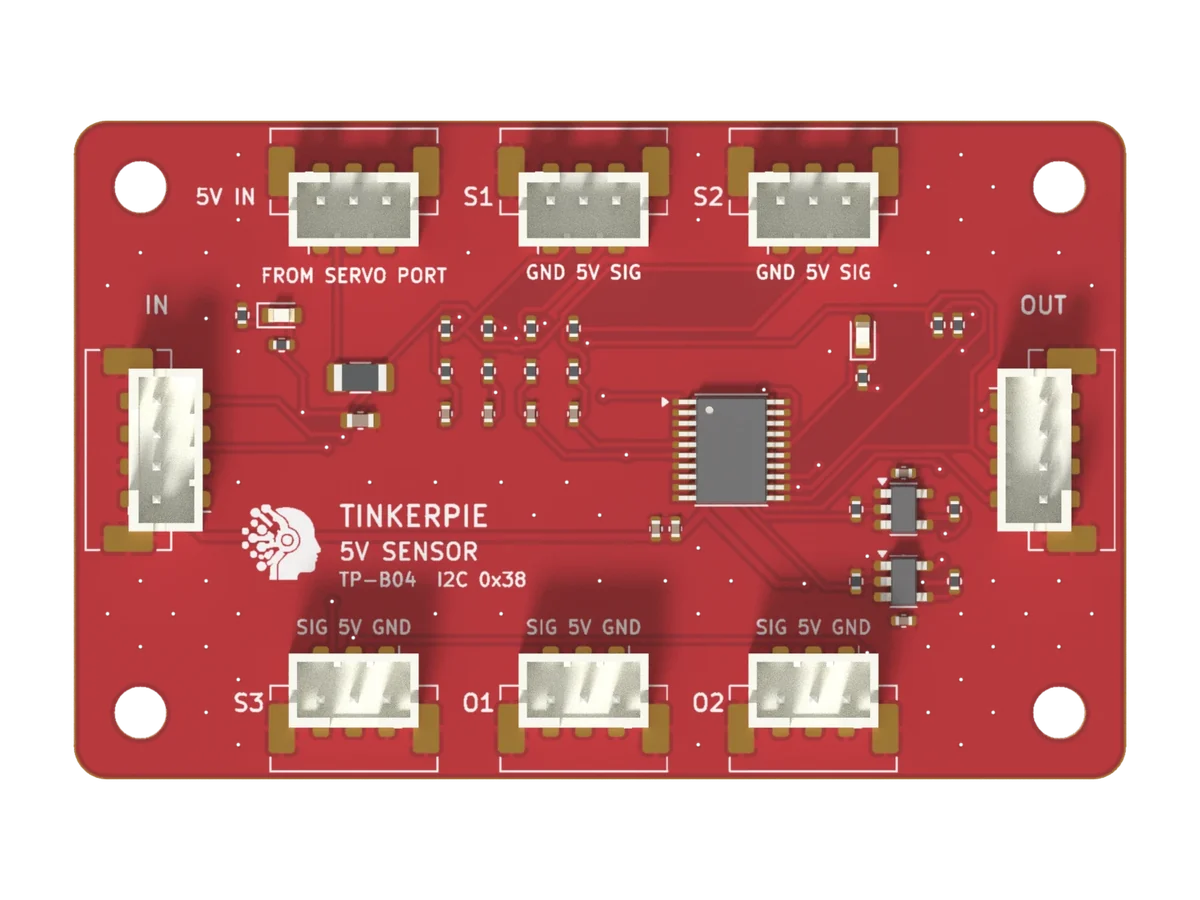

The 5V Sensor Brick connects the 5 V modules that cannot plug straight into a 3.3 V board: MQ-2 and MQ-135 gas sensors, LM35, HC-SR501 PIR and A3144 Hall sensors, relays, buzzers and fans. It has three 0-5 V inputs read in millivolts and two real 5 V outputs (with PWM for fan speed), takes its 5 V from a TinkerPie SERVO port through a 1.1 A fuse, and keeps the outputs off at power-up.
Features
- 3 inputs, 0-5 V, read in millivolts (MQ-2, MQ-135, LM35, HC-SR501, A3144)
- 2 real 5 V logic outputs for relay, buzzer and fan modules (PWM for fan speed)
- Power from a TinkerPie SERVO port, 1.1 A fuse
- Green 5 V light, outputs stay OFF at power-up
- Checks that 5 V is connected
- I2C 0x38 / 0x39
Specifications
| Size | 64 x 40 mm |
|---|---|
| Connectors | 5V IN + 5 x JST-PH 3-pin + 2 x TP-BUS |
| Inputs | 0-5 V, 47k/100k divider |
| Interface | I2C 0x38-0x39 |
| Brain | CH32V003 + 74AHCT1G125 |
