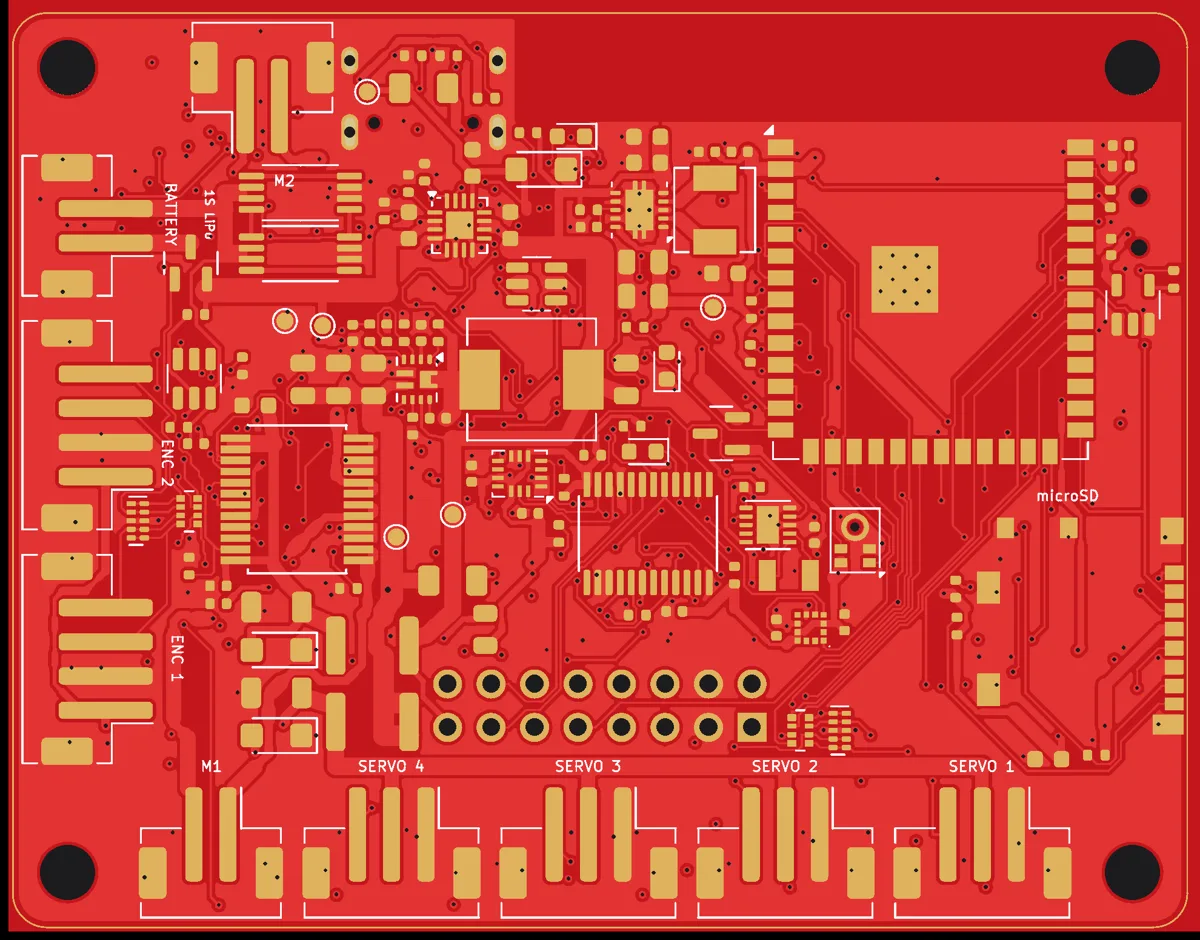

TinkerPie V1 board
The all-in-one coding, robotics and AI board, designed in India.
₹7,999
Free software: TinkerPie Studio · Delivery across India
About this kit
TinkerPie V1 is a programmable board for students. Code it with blocks, JavaScript or Arduino C++ in TinkerPie Studio, test it on the free online simulator, and build robots, weather stations, games and AI camera projects.
Features
- ESP32-S3 dual-core 240 MHz with Wi-Fi and Bluetooth, 16 MB flash, 8 MB PSRAM
- 30 RGB LEDs in a 6 × 5 matrix, buttons A and B, a π touch logo and a buzzer
- 9 on-board sensors: motion, compass, temperature, humidity, pressure, light, distance, sound, battery
- 2 motor drivers with encoder inputs and 4 servo ports for robots
- 4 SENSOR ports, an expansion header, UART and AI / CAMERA ports for 47+ accessories
- USB-C programming, 1S LiPo battery connector with charging, microSD slot
- Works with TinkerPie Studio: 58 ready-made projects, tutorials and the TinkerPie Buddy helper
Specifications
| Processor | ESP32-S3-WROOM-1 (N16R8) |
|---|---|
| Board size | 68.6 × 53.4 mm |
| Power | USB-C 5 V or 1S LiPo battery (with charger) |
| Programming | Blocks, JavaScript, Arduino C++ (TinkerPie Studio, Arduino IDE) |
| Connectivity | Wi-Fi 2.4 GHz, Bluetooth LE, USB-C |
Projects you can build
Hello, TinkerPieA red heart, then your first scrolling message.StarterShake diceShake the board to roll a number from 1 to 6, with a click.StarterRobot danceButton A: forward, spin, back. Button B: brake. Uses MOTOR 1 and MOTOR 2.StarterFinger counterShow 1, 2, 3… fingers to the webcam and TinkerPie shows the number. Use both hands for up to 10!AI cameraPhone weather stationTemperature, humidity and light from the board, live on your phone.IoTThirsty plant alarmA soil moisture sensor tells TinkerPie when the plant needs water: a sad face and a beep.Sensor projects
