OLED Display Brick

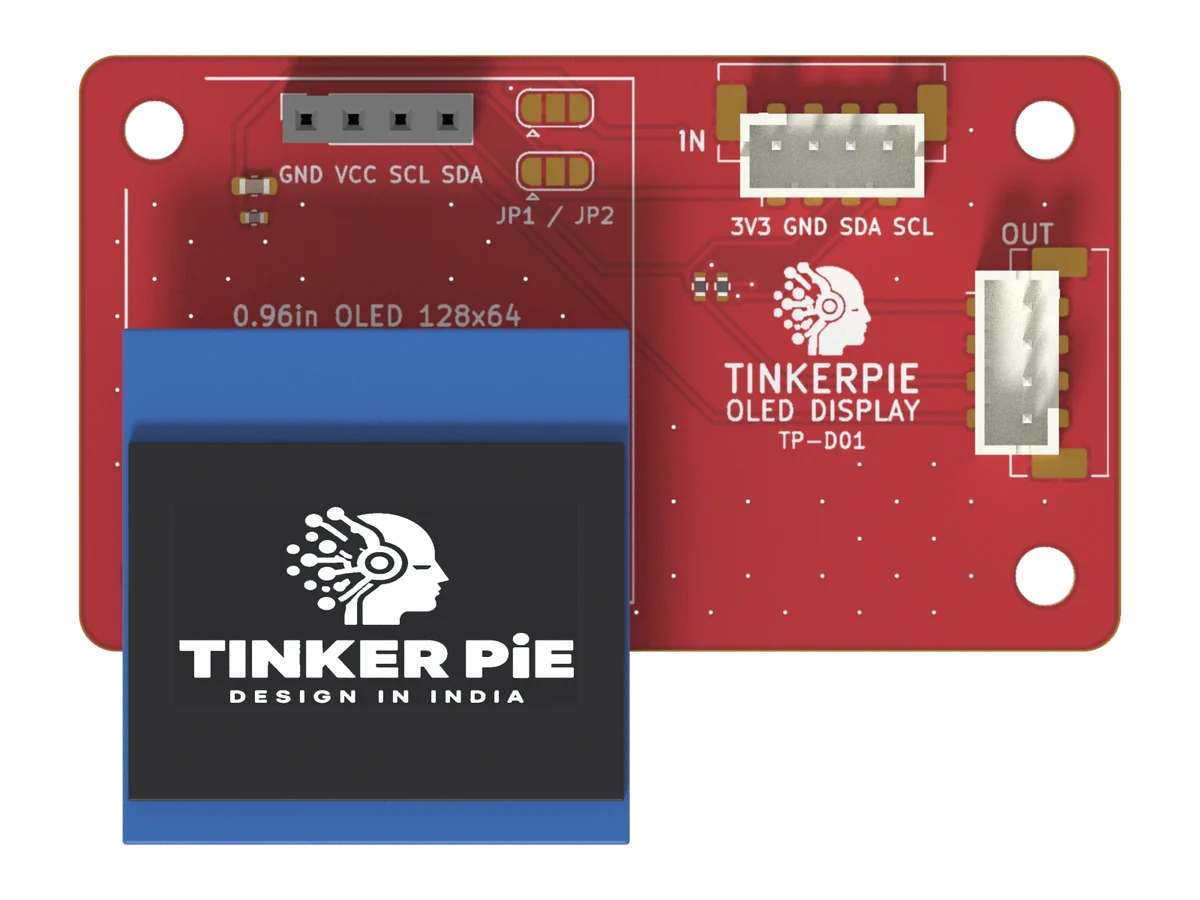

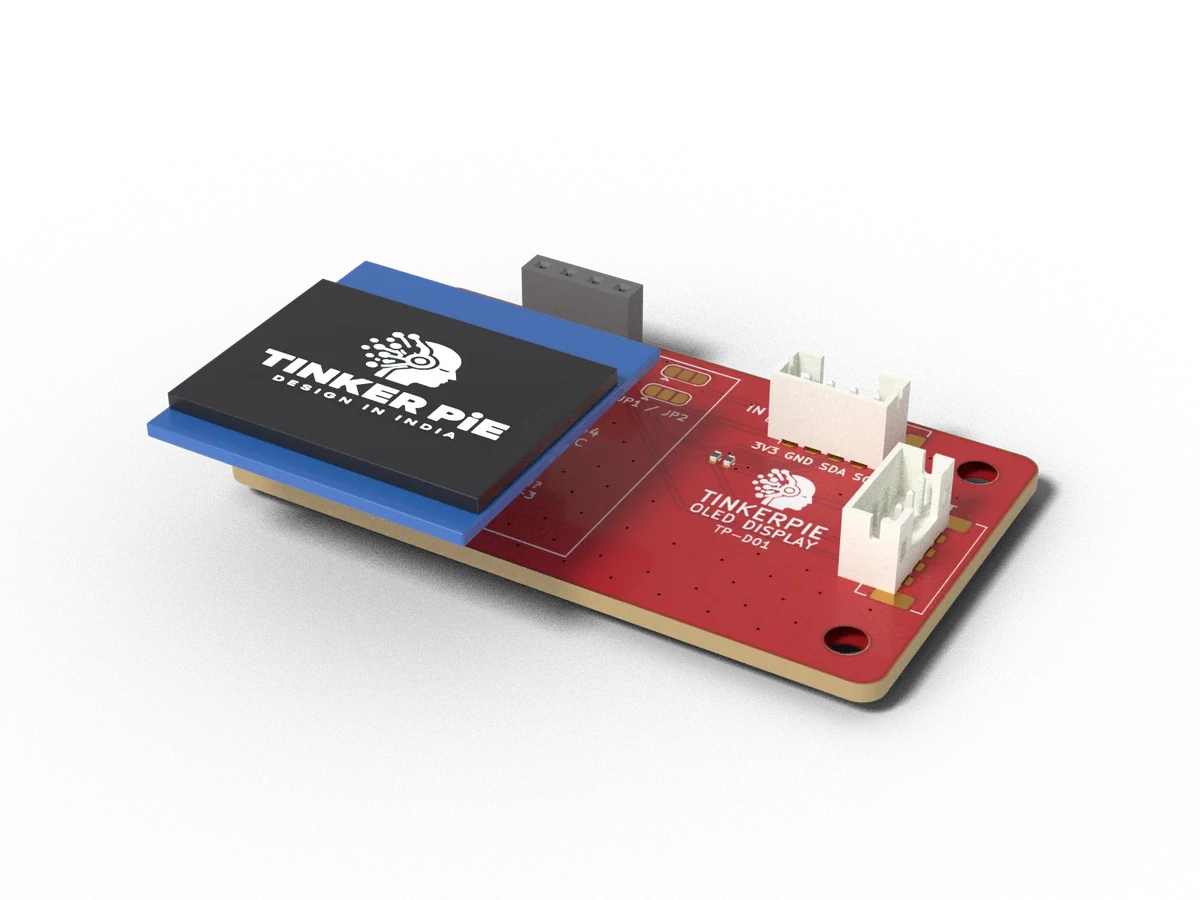

Pictured with a 0.96 in OLED screen fitted.
Displays · SKU TP-D01
Add a sharp 0.96 in OLED screen to any TinkerPie project.
₹299
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit
The OLED Display Brick is a carrier for a 0.96 in 128 x 64 SSD1306 OLED screen. A pin-order selector fits both GND-first and VCC-first OLEDs, BUS IN and BUS OUT sockets chain it with other bricks, and it works with the Adafruit SSD1306 library.
Features
- Carrier for the 0.96 in 128x64 SSD1306 OLED
- Pin-order selector (GND-first or VCC-first OLEDs)
- BUS IN + BUS OUT for daisy-chaining
- Works with the Adafruit SSD1306 library
- I2C 0x3C
Specifications
| Size | 56 x 32 mm |
|---|---|
| Display | 0.96 in OLED, 128 x 64 |
| Voltage | 3.3 V |
| Interface | I2C 0x3C |
More TinkerPie Bricks

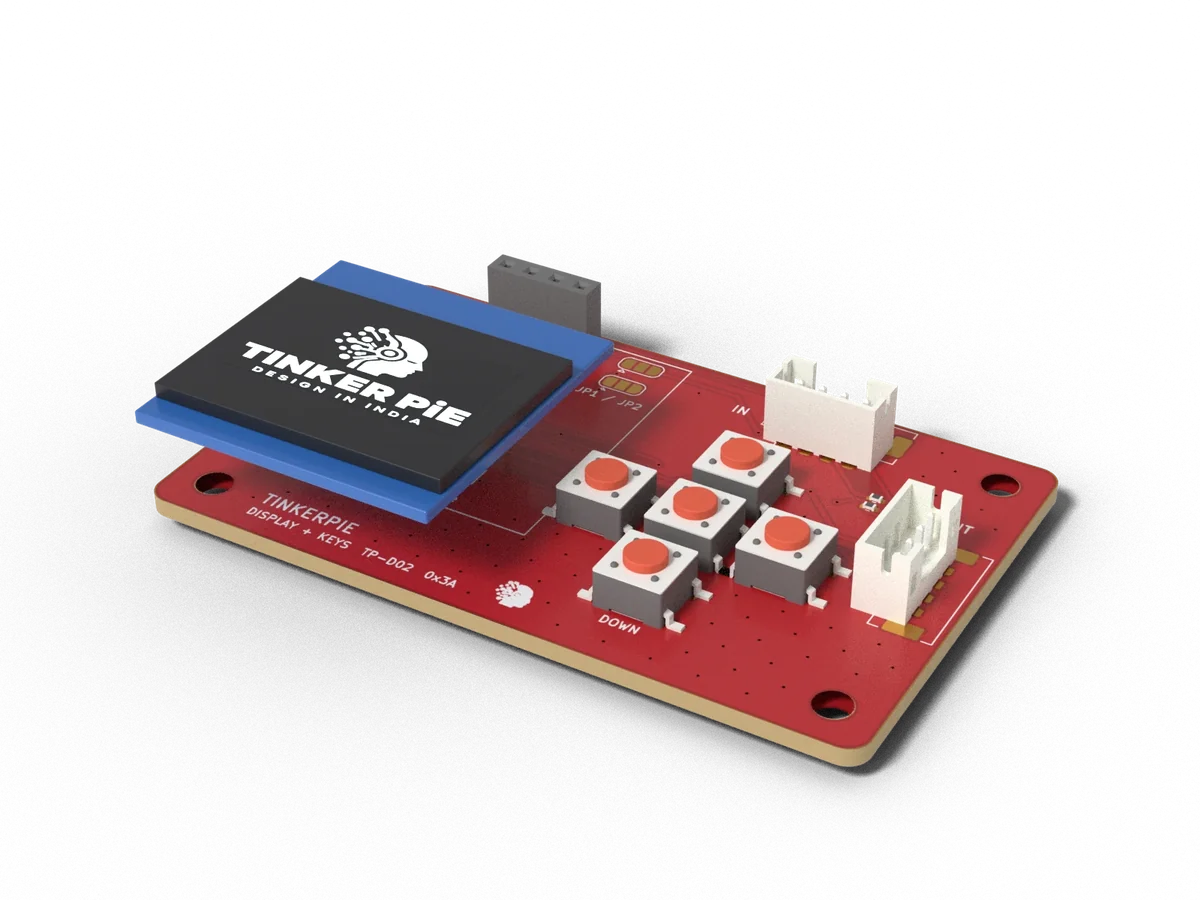

Display + Keys BrickTP-D02OLED screen plus a 5-way keypad – menus and games without using any board pins.₹499Available to order

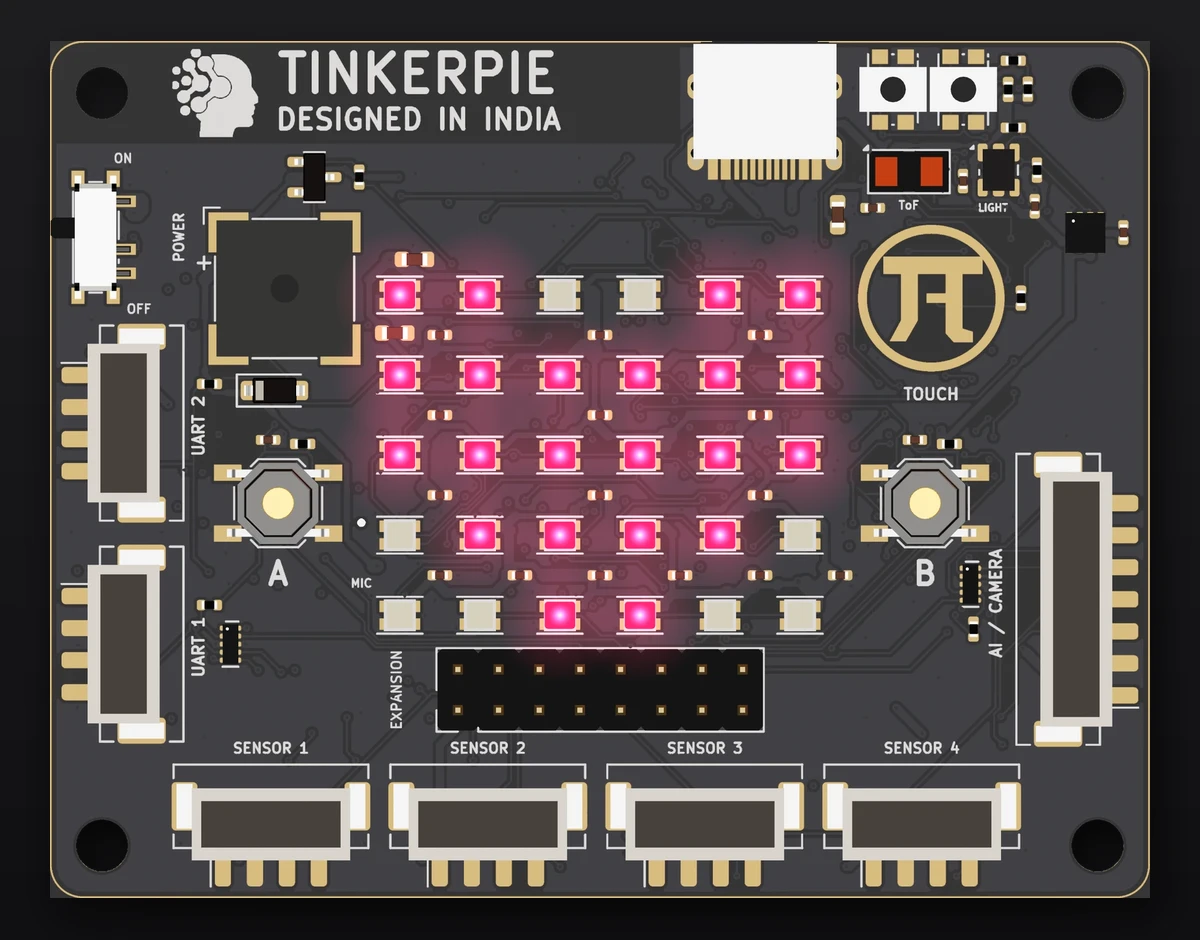

TinkerPie V1 boardThe all-in-one coding, robotics and AI board, designed in India.₹7,999Available to order
