Qwiic Adapter
Connection · SKU TP-A01
Use any Qwiic / STEMMA QT sensor on TinkerPie – safely.
₹299
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit

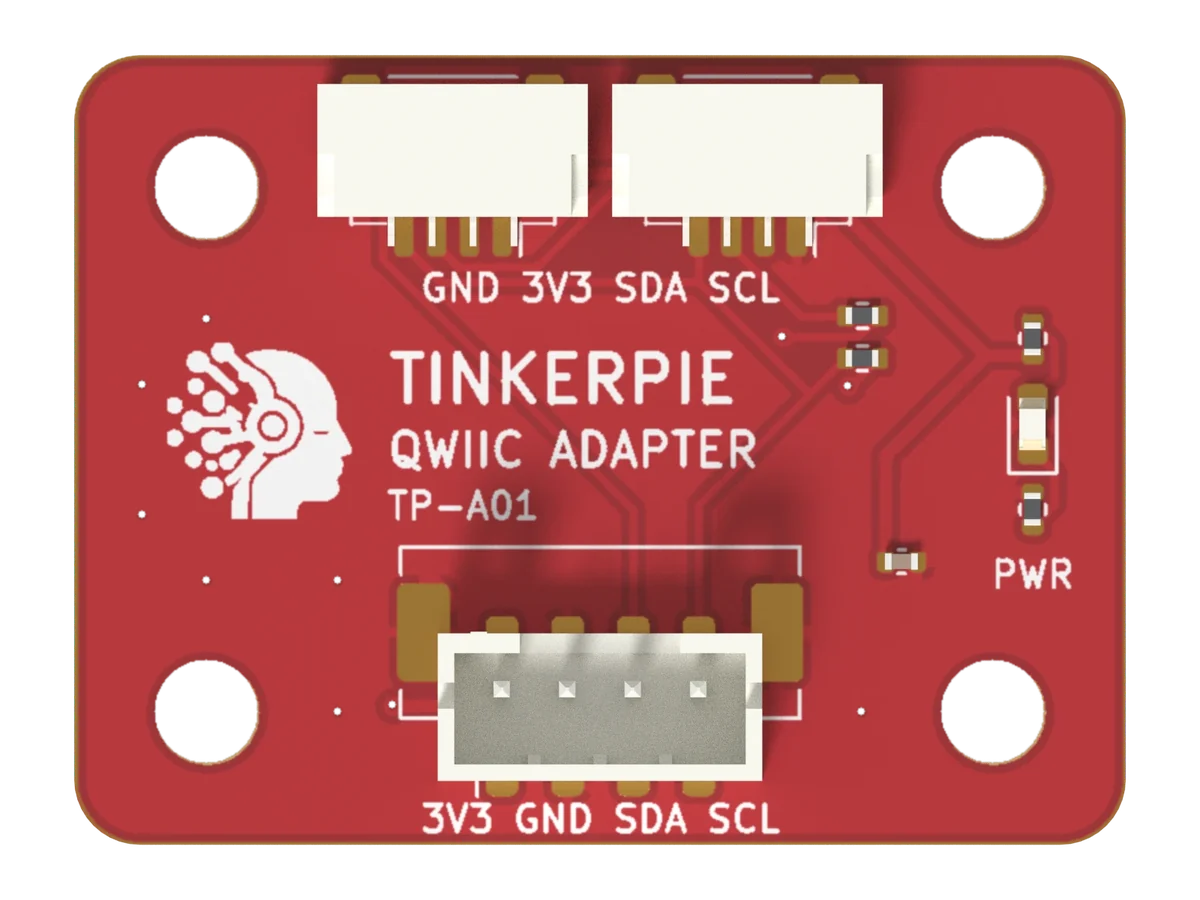

The Qwiic Adapter converts the TinkerPie SENSOR connector to the Qwiic / STEMMA QT pin order, so hundreds of Adafruit and SparkFun I2C sensors plug in safely with standard Qwiic cables. It has two Qwiic sockets, a power light and optional pull-ups.
Features
- TinkerPie SENSOR order (3V3, GND, SDA, SCL) to Qwiic order (GND, 3V3, SDA, SCL)
- 2 Qwiic / STEMMA QT sockets
- Opens up hundreds of Adafruit and SparkFun sensors
- Green power light
- Optional pull-ups for other boards
Specifications
| Size | 32 x 24 mm |
|---|---|
| Connectors | 1 x JST-PH 4-pin, 2 x JST-SH 4-pin |
| Voltage | 3.3 V |
| Interface | I2C (pass-through) |
