I2C Mux 8
Connection · SKU TP-A03
Eight separate I2C channels – use many sensors that share the same address.
₹499
Works with TinkerPie V1 · same JST-PH cables as the board · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits
About this kit

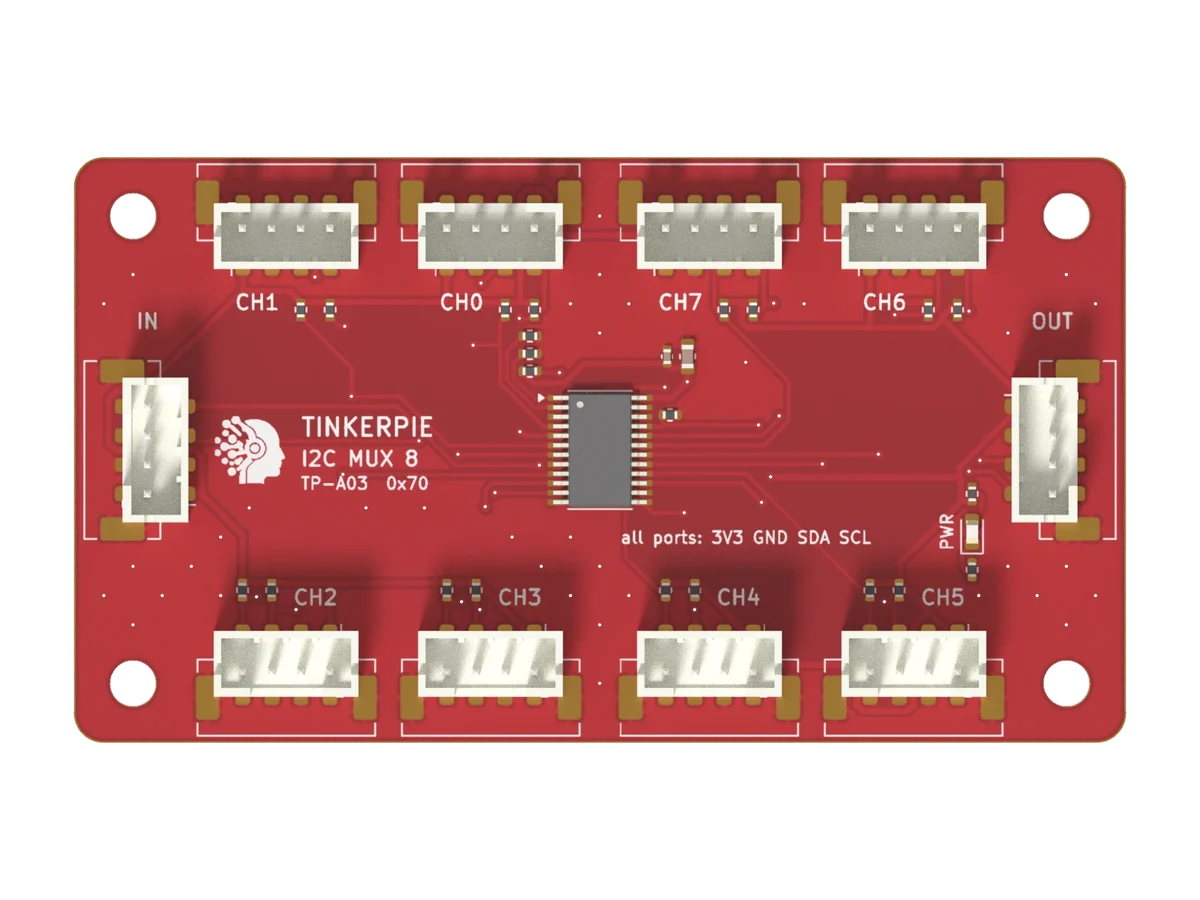

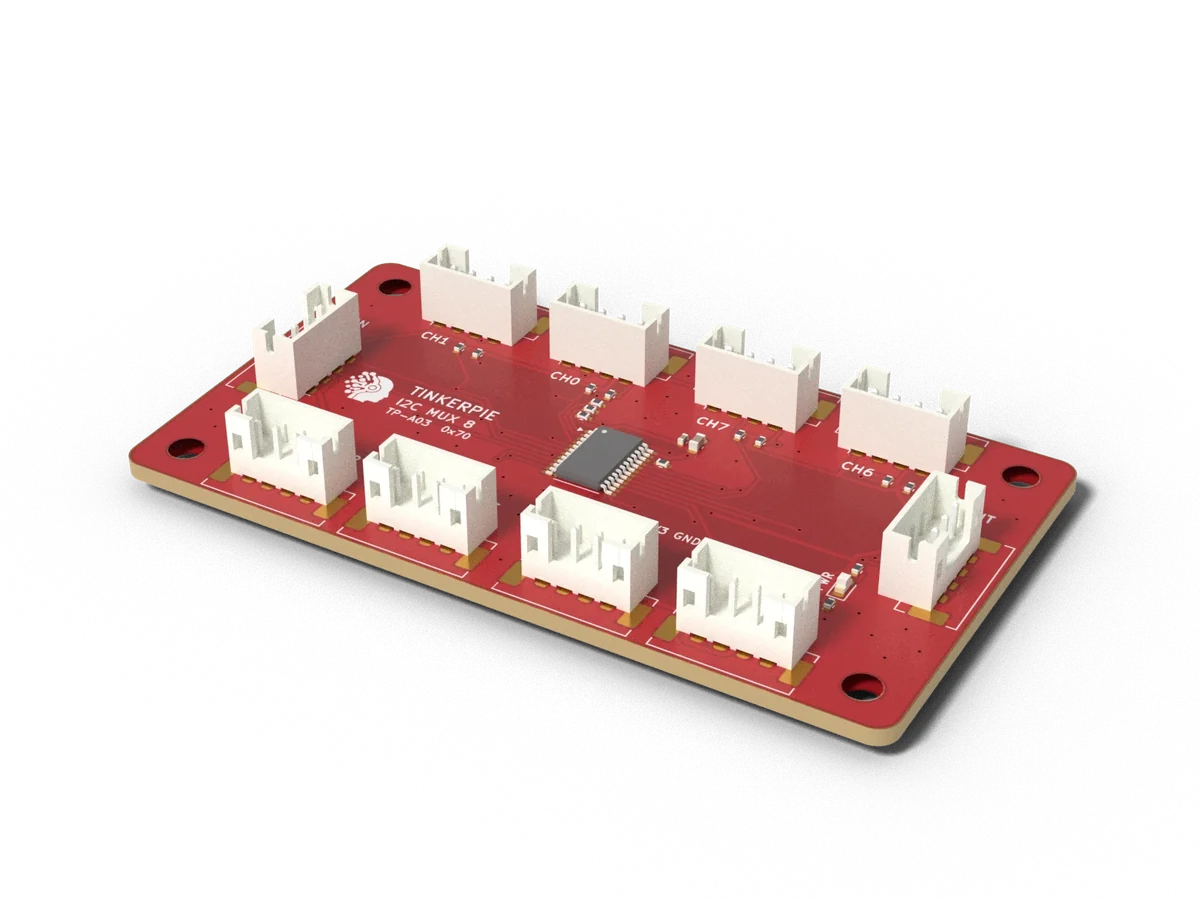

The I2C Mux 8 gives TinkerPie eight separate I2C channels, so several sensors that share the same address, for example four colour sensors or two Ultrasonic Bricks, can work on one robot. Each channel has its own pull-ups, and up to eight muxes can be used together.
Features
- TCA9548A 8-channel I2C switch
- 8 TP-BUS channel sockets, each with its own pull-ups
- Example: 4 colour sensors or 2 ultrasonic bricks on one robot
- Address 0x70-0x77 - up to 8 muxes
- Green power light
- BUS IN + BUS OUT
Specifications
| Size | 72 x 40 mm |
|---|---|
| Channels | 8 x JST-PH 4-pin |
| Voltage | 3.3 V |
| Interface | I2C 0x70-0x77 |
| Chip | TI TCA9548A |
More TinkerPie Bricks

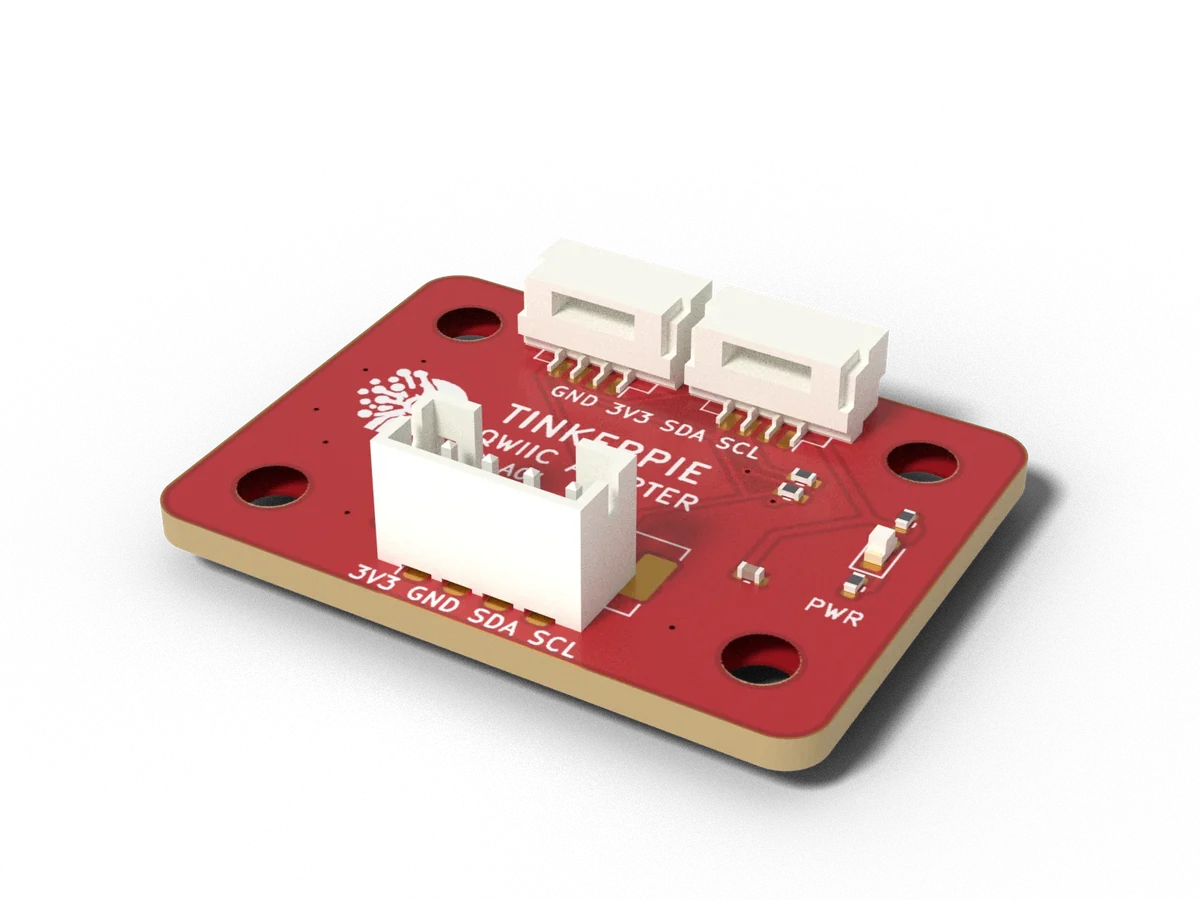

Qwiic AdapterTP-A01Use any Qwiic / STEMMA QT sensor on TinkerPie – safely.₹299Available to order

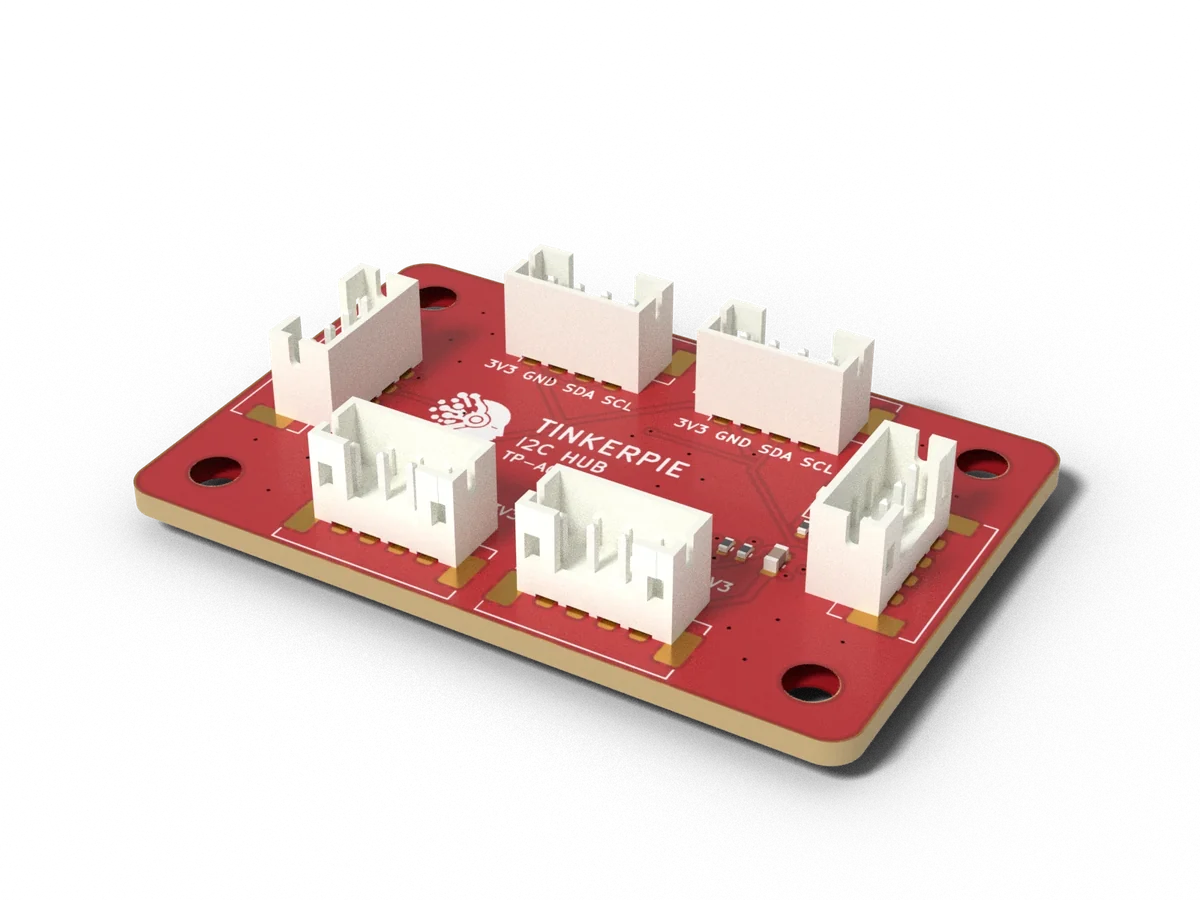

I2C HubTP-A02One SENSOR port becomes six – plug in many bricks and sensors at once.₹299Available to order
