ArduinoPie Shield
Plug-and-play sensor shield for Arduino UNO: connect 45+ sensors without a breadboard.
₹1,299
Programmed with the free Arduino IDE · Delivery across India
About this kit

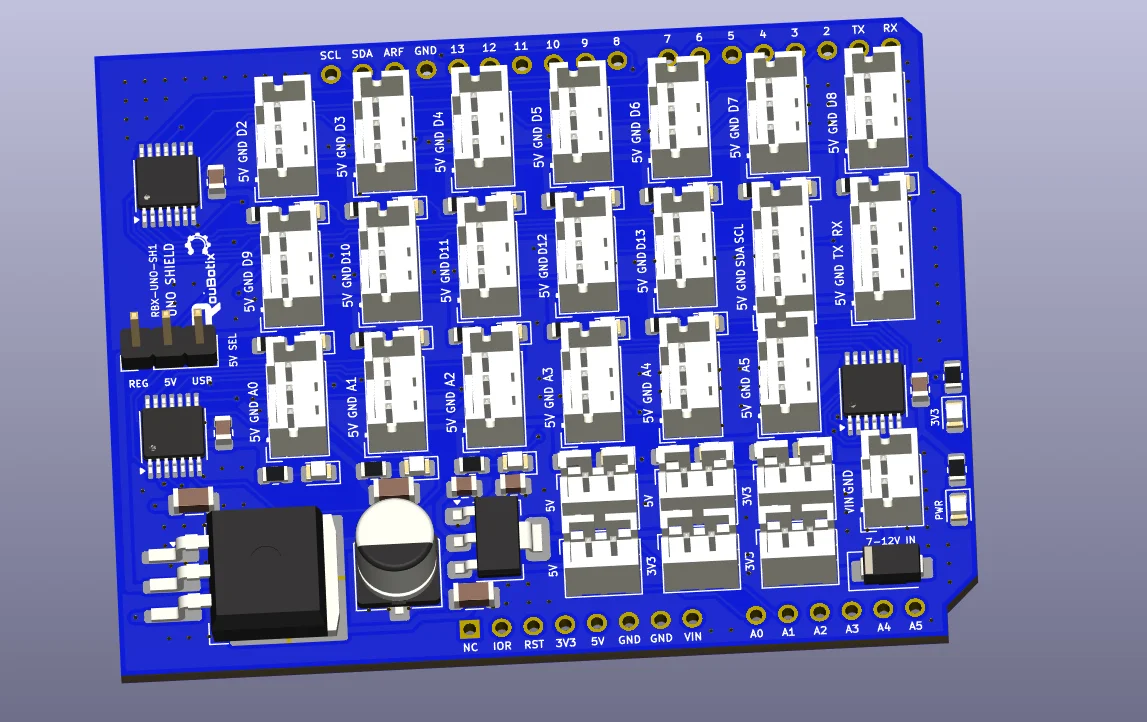

The ArduinoPie Shield sits on an Arduino UNO and brings every analog pin, digital pin and communication port out to its own 3-pin connector with power and ground. Students just plug in a sensor, write the program and run it: no breadboard, no loose jumper wires, no wiring mistakes.
Features
- Fits Arduino UNO and UNO-compatible boards
- Digital ports D2 to D13, each with 5 V, GND and signal
- Analog ports A0 to A5, each with 5 V, GND and signal
- I2C (SDA, SCL) and UART (TX, RX) communication ports
- Extra 5 V and 3.3 V power ports for modules
- 7-12 V external power input with on-board regulator and a 5 V source selector (REG / 5V / USB)
- Works with 45+ sensors and modules: ultrasonic, PIR, soil moisture, DHT11, servo, OLED and more
Specifications
| Compatible with | Arduino UNO R3 and compatible boards |
|---|---|
| Sensor ports | Digital D2-D13, analog A0-A5, I2C, UART |
| Power input | 7-12 V DC, or 5 V from the Arduino USB |
| Connectors | Polarised 3-pin and 4-pin connectors with 5 V and GND |
