Metal Touch Sensor Brick

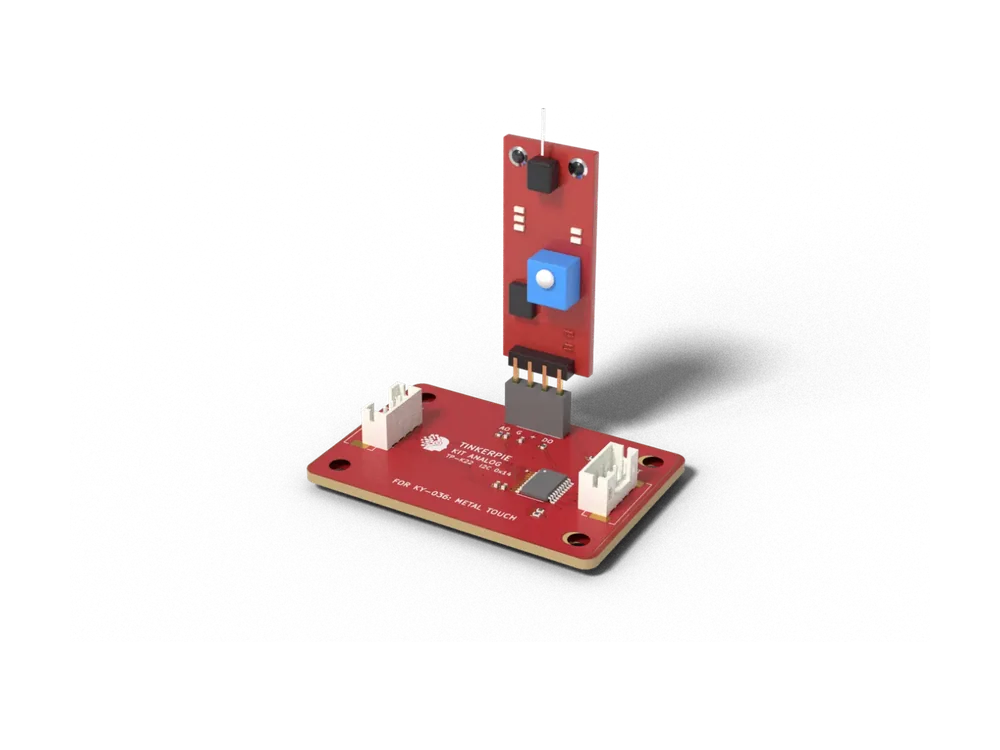

Pictured with the KY-036 kit module plugged in.

Kit Bricks · SKU TP-K22

Touch the metal pin to trigger.

₹299

Pre-order

Pre-order on WhatsApp

Works with TinkerPie V1 · Arduino C++ with the TinkerPieBricks library · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits

About this kit

Touch the metal pin to trigger. The Metal Touch Sensor Brick is a carrier for the KY-036 module from common 37-in-1 sensor kits: plug the module into the socket and connect one cable to a TinkerPie SENSOR port. A small CH32V003 processor on the brick does the timing work, so your program simply reads the result over I2C.

Features

• Touch output with sensitivity pot
• Analog level
• Hidden touch buttons
• Plug the kit module straight into the socket – no jumper wires
• One cable to any TinkerPie SENSOR port (I2C), BUS IN + BUS OUT to chain more bricks
• On-board CH32V003 does the timing – your code just reads the result

Specifications

How to use it with TinkerPie

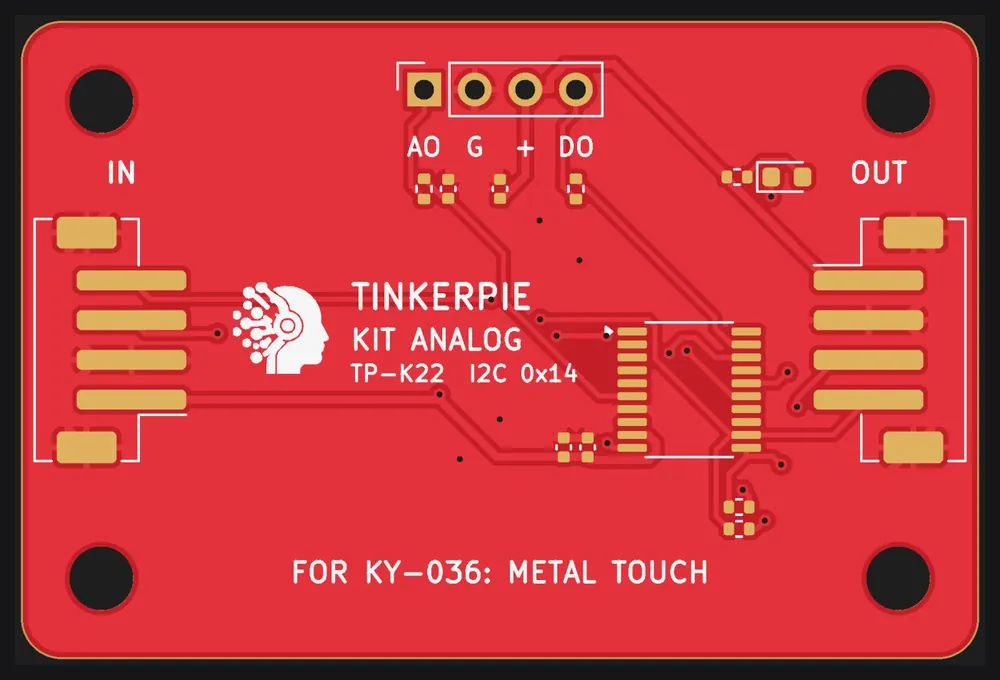

1. Plug the KY-036 module into the 2.54 mm socket on the top edge. Match the pin names: the brick says AO G + DO, the module has the same letters.
2. Connect BUS IN to any TinkerPie SENSOR 1-4 port with a 4-pin JST-PH cable (the same cable as the other sensors).

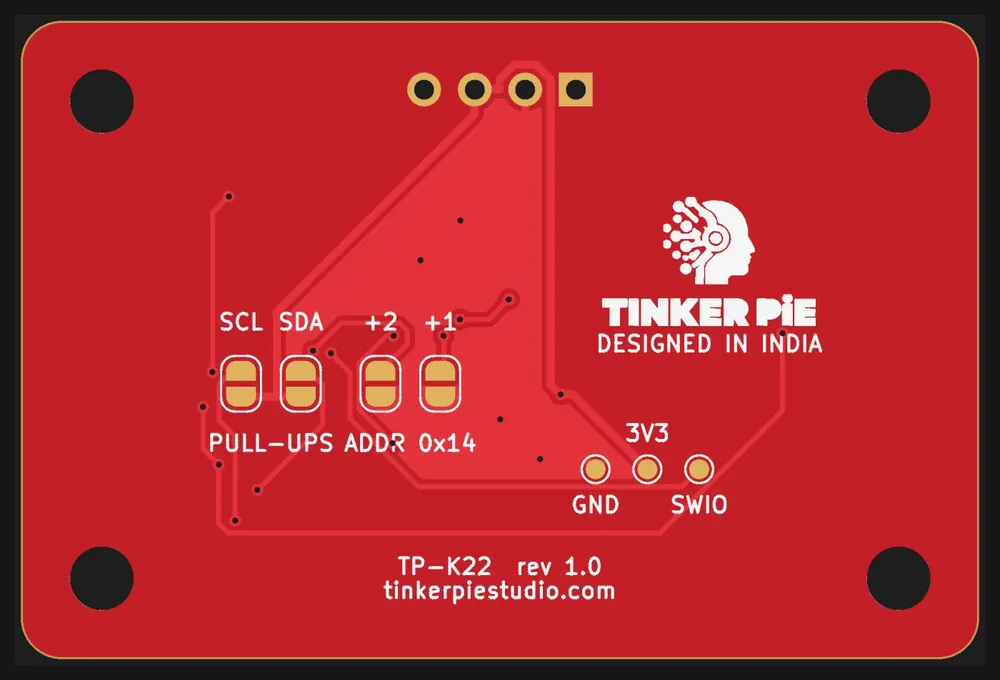

3. More bricks? Plug the next one into BUS OUT. Two bricks of the same type need different addresses: bridge ADDR +1, +2 or +4 on the back (0x14-0x17; the first is 0x14).
4. Install the TinkerPie and TinkerPieBricks Arduino libraries, open the quick-start sketch below, choose the board ESP32S3 Dev Module and upload.

Libraries: TinkerPie and TinkerPieBricks (Arduino IDE: Sketch → Include Library → Add .ZIP Library). Full guide: getting started with TinkerPie Bricks.

Quick start

Upload this, open the Serial Monitor at 115200 baud and watch the TinkerPie matrix.

// Metal Touch Sensor Brick (TP-K22): quick start
// Reads the brick and shows the value on the TinkerPie matrix and in the Serial Monitor (115200 baud).
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitAnalog a;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!a.begin()) Serial.println("Metal Touch Sensor Brick not found at 0x14: check the cable to SENSOR 1-4");
}

void loop() {
  uint16_t v = a.analog();           // AO: 0-1023
  bool hit = a.digital();            // DO: above the level set with the blue knob
  Serial.printf("AO %u   DO %d\n", v, hit);
  led::plotBarGraph(v, 1023, hit ? Colors::Red : Colors::Green);
  basic::pause(100);
}

Project: Touch lamp

Touch the metal pin to switch the TinkerPie matrix lamp on and off. A long touch makes it brighter.

// Touch lamp: Metal Touch Sensor Brick (TP-K22)
// Touch the metal pin to switch the TinkerPie matrix lamp on and off. A long touch makes it brighter.
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitAnalog touch;
bool on = false, was = false;
int bright = 60;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!touch.begin()) Serial.println("Metal Touch Sensor Brick not found at 0x14: check the cable to SENSOR 1-4");
}

void loop() {
  bool t = touch.digital();
  if (t && !was) { on = !on; if (on) led::fill(Colors::White); else basic::clearScreen(); }
  if (t && on) { bright = min(bright + 2, 255); led::setBrightness(bright); }
  was = t;
  basic::pause(50);
}
