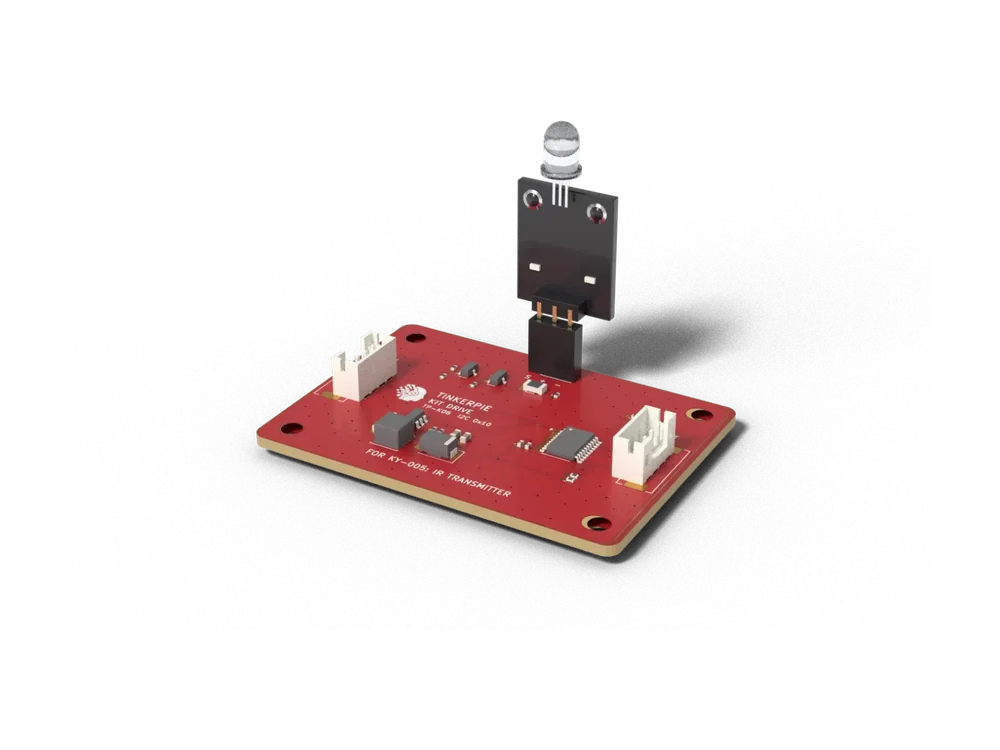

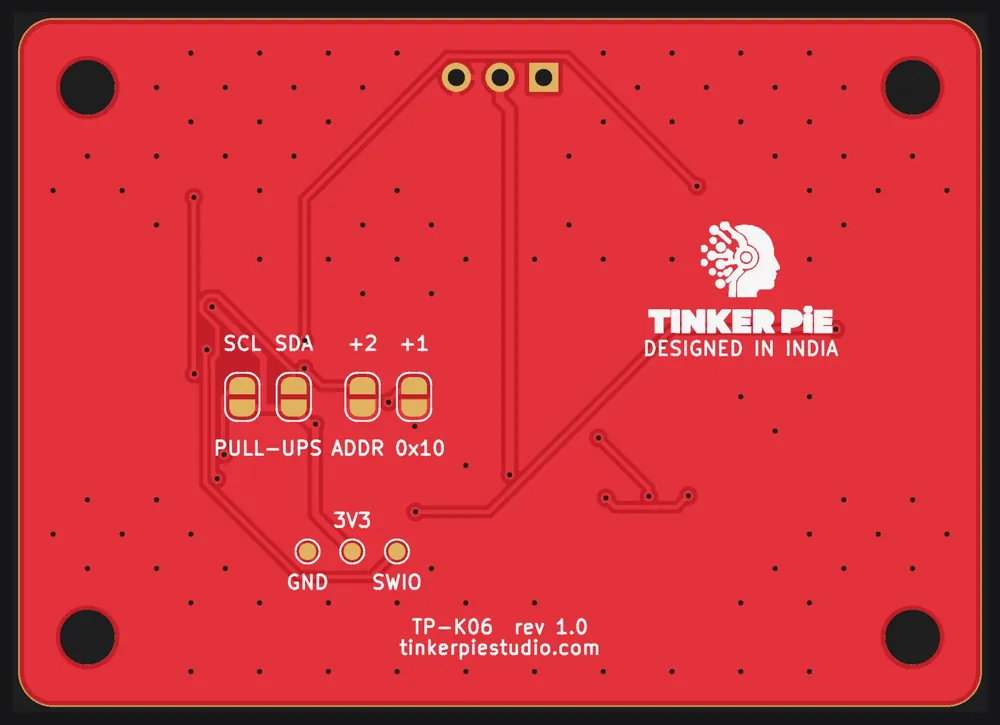

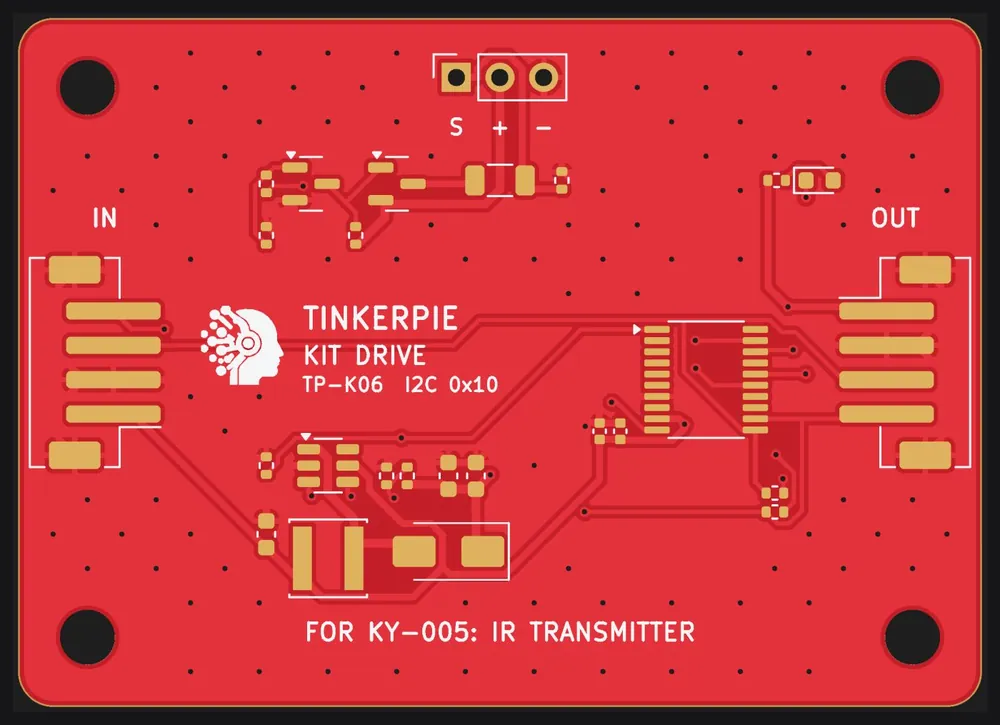

IR Transmitter Brick

// IR Transmitter Brick (TP-K06): quick start
// Reads the brick and shows the value on the TinkerPie matrix and in the Serial Monitor (115200 baud).
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitDrive ir;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!ir.begin(tpb::KitDrive::IR_SEND)) Serial.println("IR Transmitter Brick not found at 0x10: check the cable to SENSOR 1-4");
}

void loop() {
  if (input::buttonIsPressed(Button::A)) {
    ir.irSend(0x00, 0x18);           // NEC address 0x00, command 0x18
    basic::showIcon(IconNames::ArrowUp, Colors::Purple);
    basic::clearScreen();
  }
  basic::pause(50);
}

// TinkerPie TV remote: IR Transmitter Brick (TP-K06)
// Button A sends “volume up”, button B sends “volume down” and the π logo sends “power” to a TV that uses NEC codes. Find your TV’s codes with the IR Receiver Brick.
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitDrive ir;
const uint8_t TV = 0x00, VOL_UP = 0x02, VOL_DOWN = 0x03, POWER = 0x45;   // example codes: read yours with the IR Receiver Brick

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!ir.begin(tpb::KitDrive::IR_SEND)) Serial.println("IR Transmitter Brick not found at 0x10: check the cable to SENSOR 1-4");
}

void loop() {
  if (input::buttonIsPressed(Button::A)) { ir.irSend(TV, VOL_UP); basic::showIcon(IconNames::ArrowUp, Colors::Green); }
  if (input::buttonIsPressed(Button::B)) { ir.irSend(TV, VOL_DOWN); basic::showIcon(IconNames::ArrowDown, Colors::Blue); }
  if (input::touchIsPressed()) { ir.irSend(TV, POWER); basic::showIcon(IconNames::Square, Colors::Red); }
  basic::clearScreen();
  basic::pause(50);
}
