Digital Temperature Brick

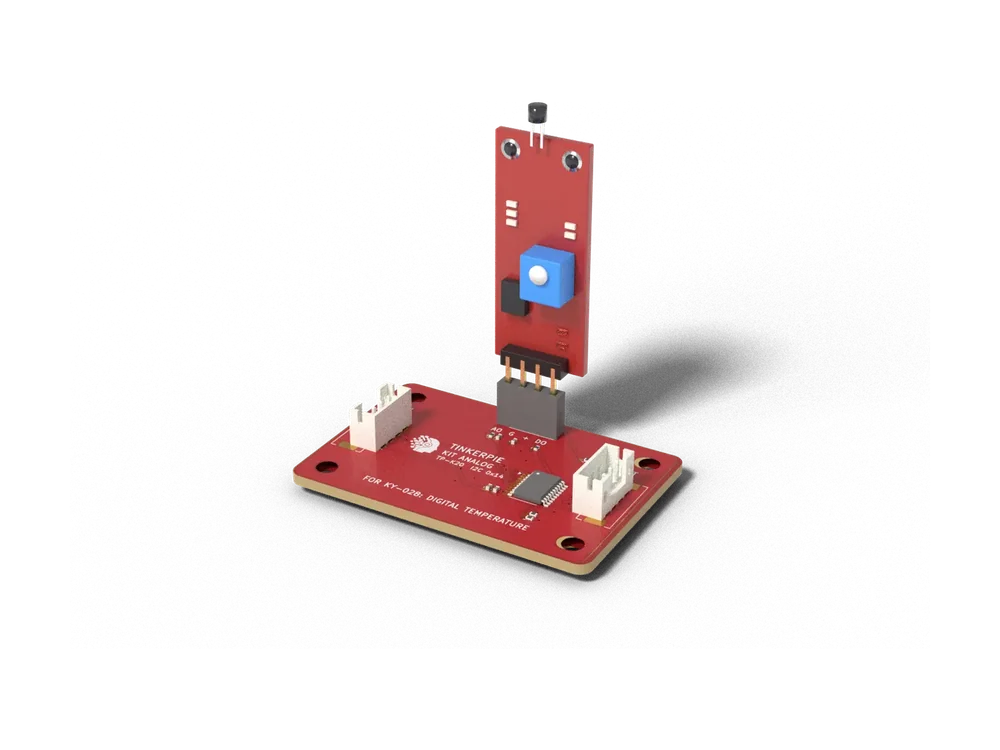

Pictured with the KY-028 kit module plugged in.

Kit Bricks · SKU TP-K20

NTC thermistor with a set-point comparator.

₹299

Pre-order

Pre-order on WhatsApp

Works with TinkerPie V1 · Arduino C++ with the TinkerPieBricks library · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits

About this kit

NTC thermistor with a set-point comparator. The Digital Temperature Brick is a carrier for the KY-028 module from common 37-in-1 sensor kits: plug the module into the socket and connect one cable to a TinkerPie SENSOR port. A small CH32V003 processor on the brick does the timing work, so your program simply reads the result over I2C.

Features

• Over-temperature digital output (pot)
• Analog NTC level
• Thermostat projects
• Plug the kit module straight into the socket – no jumper wires
• One cable to any TinkerPie SENSOR port (I2C), BUS IN + BUS OUT to chain more bricks
• On-board CH32V003 does the timing – your code just reads the result

Specifications

How to use it with TinkerPie

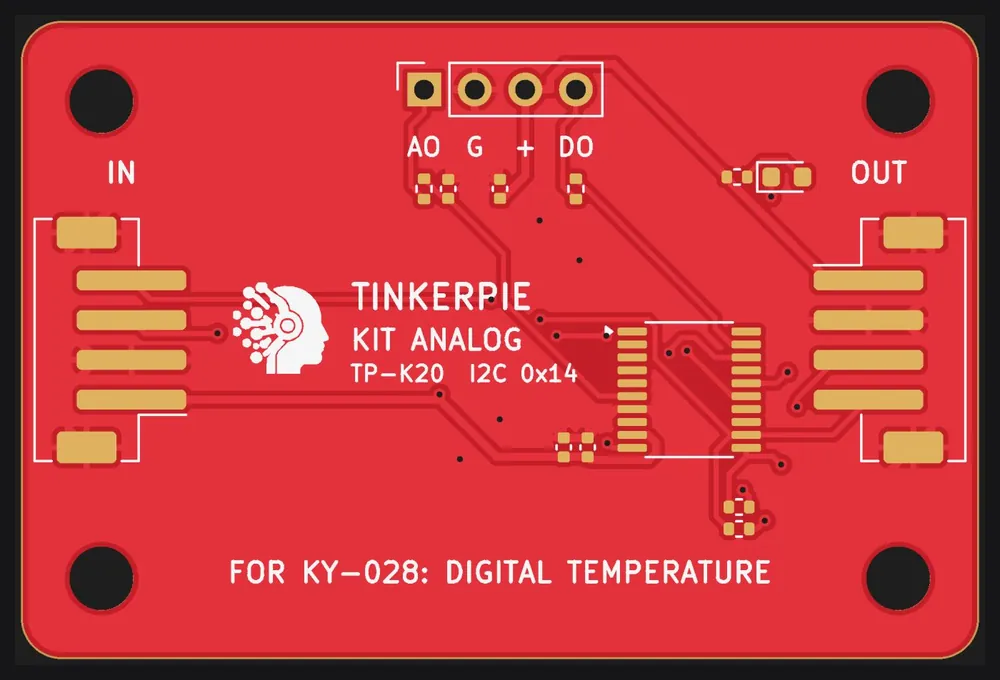

1. Plug the KY-028 module into the 2.54 mm socket on the top edge. Match the pin names: the brick says AO G + DO, the module has the same letters.
2. Connect BUS IN to any TinkerPie SENSOR 1-4 port with a 4-pin JST-PH cable (the same cable as the other sensors).

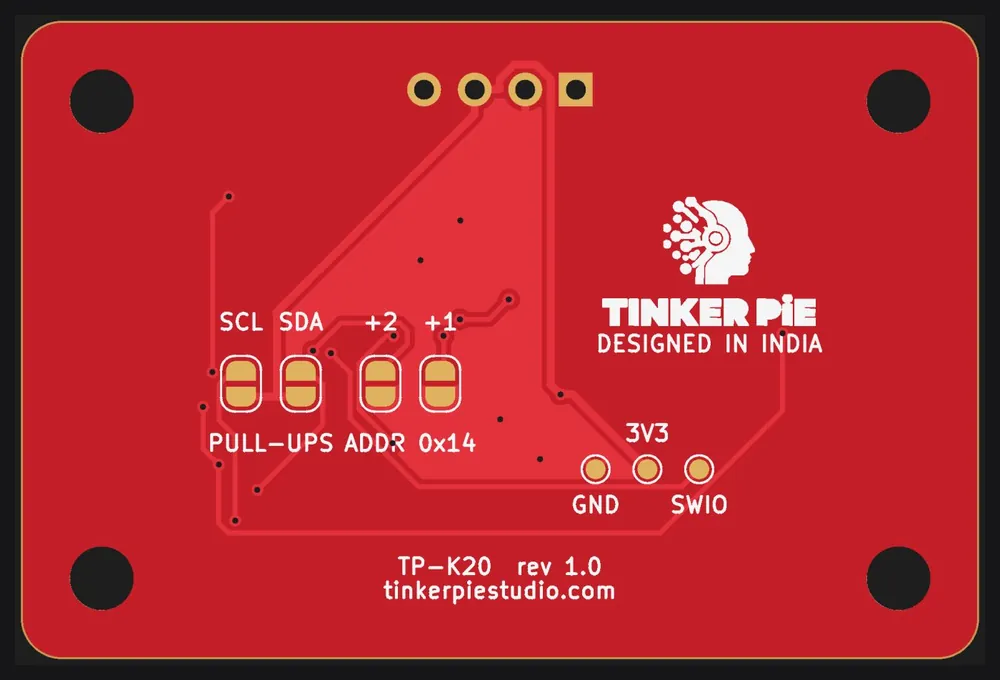

3. More bricks? Plug the next one into BUS OUT. Two bricks of the same type need different addresses: bridge ADDR +1, +2 or +4 on the back (0x14-0x17; the first is 0x14).
4. Install the TinkerPie and TinkerPieBricks Arduino libraries, open the quick-start sketch below, choose the board ESP32S3 Dev Module and upload.

Libraries: TinkerPie and TinkerPieBricks (Arduino IDE: Sketch → Include Library → Add .ZIP Library). Full guide: getting started with TinkerPie Bricks.

Quick start

Upload this, open the Serial Monitor at 115200 baud and watch the TinkerPie matrix.

// Digital Temperature Brick (TP-K20): quick start
// Reads the brick and shows the value on the TinkerPie matrix and in the Serial Monitor (115200 baud).
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitAnalog a;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!a.begin()) Serial.println("Digital Temperature Brick not found at 0x14: check the cable to SENSOR 1-4");
}

void loop() {
  uint16_t v = a.analog();           // AO: 0-1023
  bool hit = a.digital();            // DO: above the level set with the blue knob
  Serial.printf("AO %u   DO %d\n", v, hit);
  led::plotBarGraph(v, 1023, hit ? Colors::Red : Colors::Green);
  basic::pause(100);
}

Project: Fan thermostat

Set the switching temperature with the blue knob. When it is warmer, DO switches on and TinkerPie runs a fan on MOTOR 1.

// Fan thermostat: Digital Temperature Brick (TP-K20)
// Set the switching temperature with the blue knob. When it is warmer, DO switches on and TinkerPie runs a fan on MOTOR 1.
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitAnalog ntc;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!ntc.begin()) Serial.println("Digital Temperature Brick not found at 0x14: check the cable to SENSOR 1-4");
}

void loop() {
  bool hot = ntc.digital();           // DO: set point from the blue knob
  motors::run(Motor::M1, hot ? 80 : 0);
  led::plotBarGraph(1023 - ntc.analog(), 1023, hot ? Colors::Red : Colors::Blue);   // NTC: lower AO = warmer on most modules
  basic::pause(200);
}
