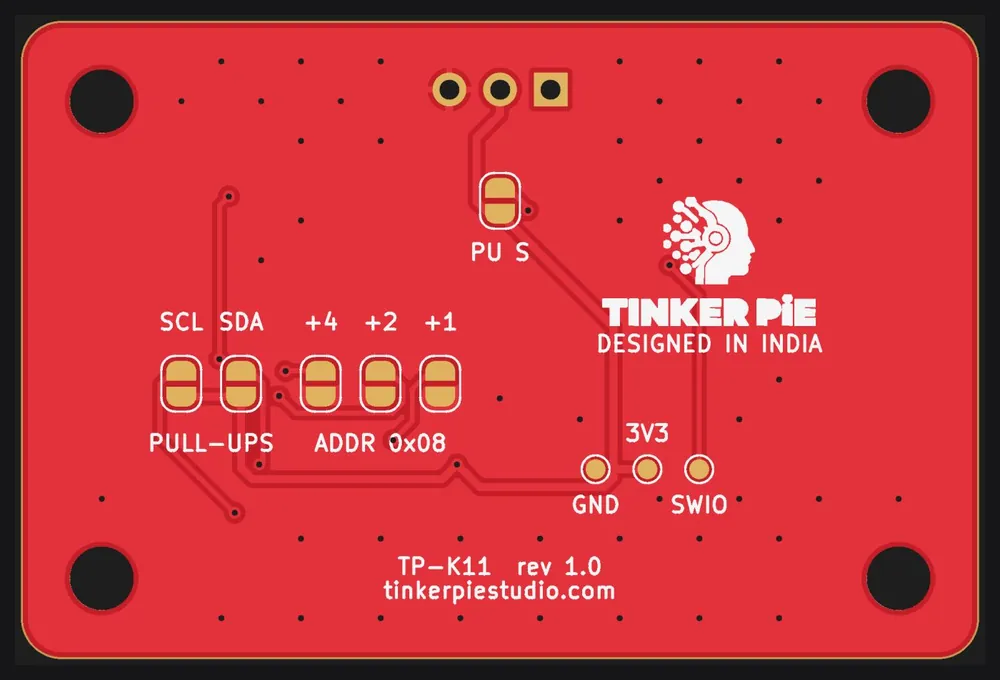

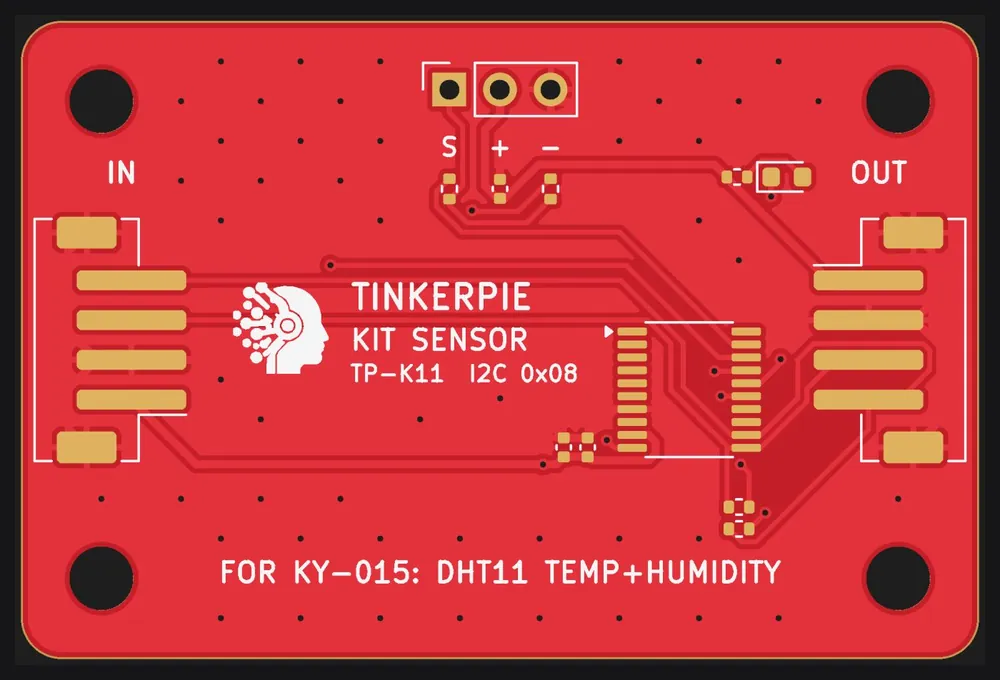

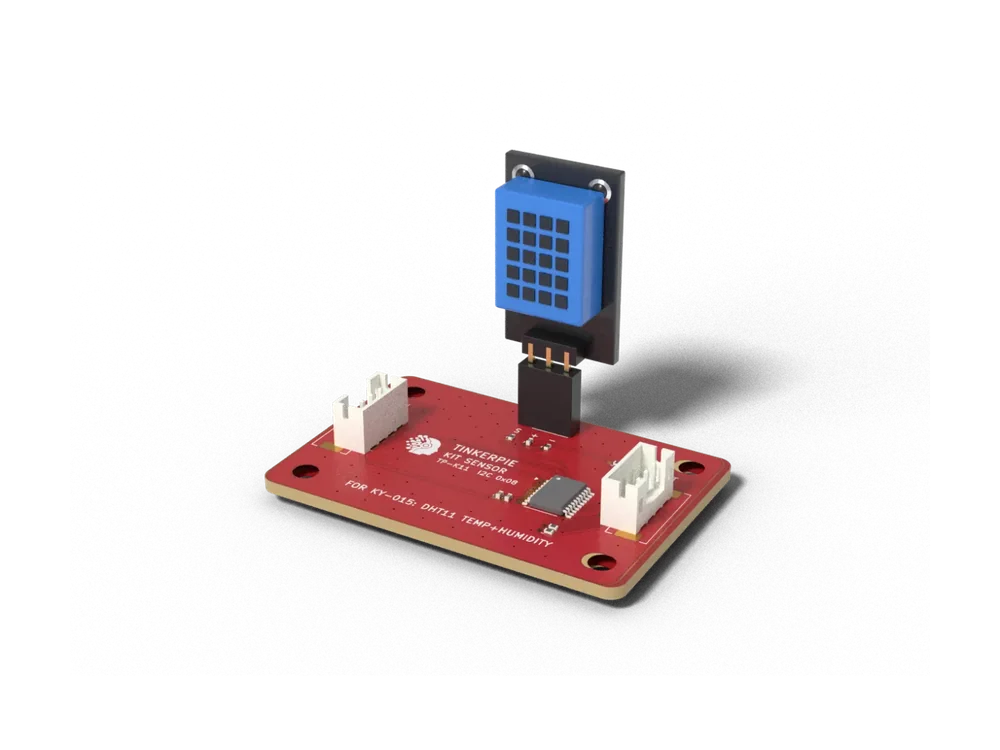

DHT11 Temp & Humidity Brick

// DHT11 Temp & Humidity Brick (TP-K11): quick start
// Reads the brick and shows the value on the TinkerPie matrix and in the Serial Monitor (115200 baud).
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitSensor dht;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!dht.begin(tpb::KitSensor::DHT11)) Serial.println("DHT11 Temp & Humidity Brick not found at 0x08: check the cable to SENSOR 1-4");
}

void loop() {
  if (dht.error() == 0) {
    Serial.printf("%.1f C  %.0f %%RH\n", dht.celsius(), dht.humidity());
    basic::showNumber(dht.humidity(), Colors::Cyan);
  } else Serial.println("DHT11 not ready yet");
  basic::pause(2000);
}

// Room comfort meter: DHT11 Temp & Humidity Brick (TP-K11)
// TinkerPie smiles when the room is comfortable (20-28 °C and 30-65 % humidity) and frowns when it is too hot, cold, dry or damp.
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitSensor dht;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!dht.begin(tpb::KitSensor::DHT11)) Serial.println("DHT11 Brick not found at 0x08: check the cable to SENSOR 1-4");
}

void loop() {
  if (dht.error() == 0) {
    float c = dht.celsius(), rh = dht.humidity();
    bool ok = c >= 20 && c <= 28 && rh >= 30 && rh <= 65;
    basic::showIcon(ok ? IconNames::Happy : IconNames::Sad, ok ? Colors::Green : Colors::Orange);
    Serial.printf("%.1f C  %.0f %%RH  %s\n", c, rh, ok ? "comfortable" : "not comfortable");
  }
  basic::pause(2000);
}
