Active Buzzer Brick

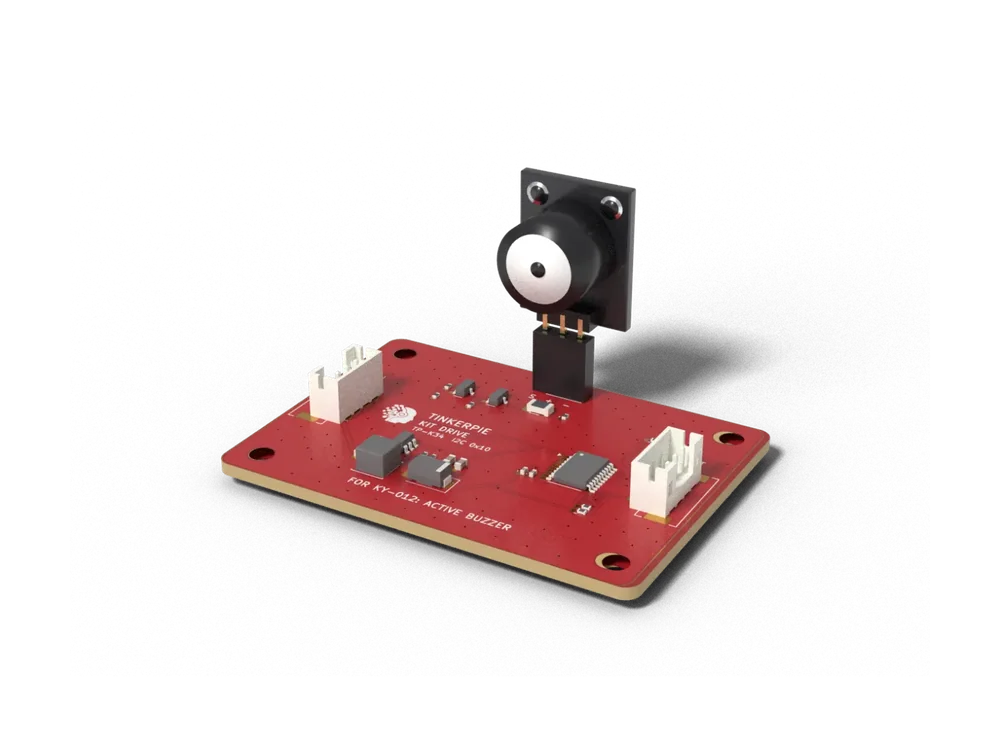

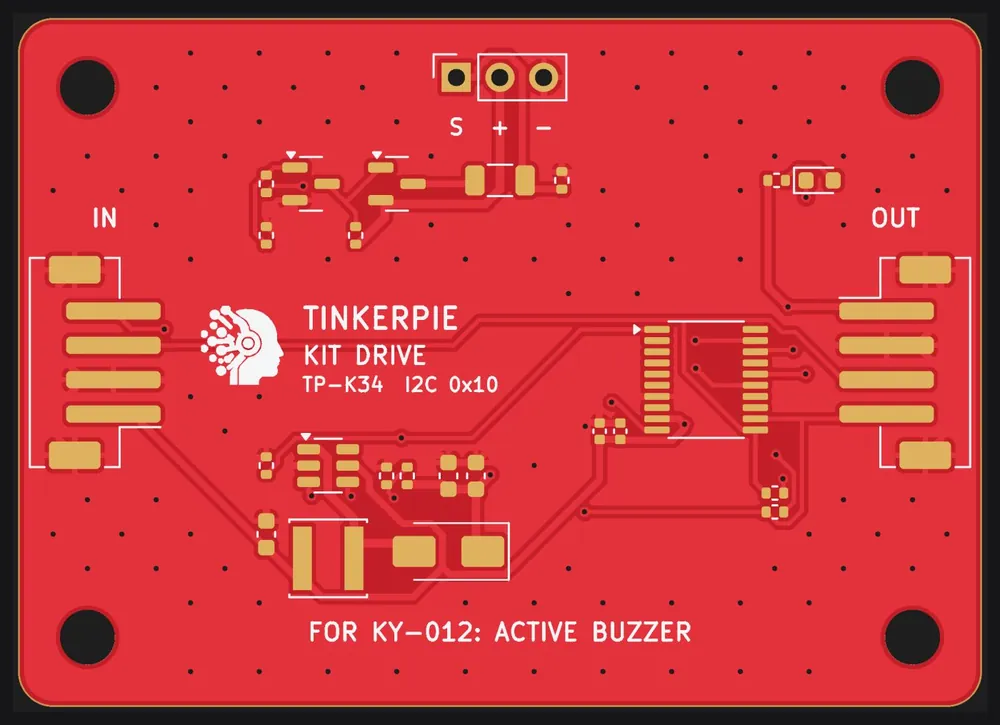

Pictured with the KY-012 kit module plugged in.

Kit Bricks · SKU TP-K34

Loud beeps with one command.

₹299

Pre-order

Pre-order on WhatsApp

Works with TinkerPie V1 · Arduino C++ with the TinkerPieBricks library · Delivery across India: ₹100, 3–7 days · 7-day replacement for damaged or defective kits

About this kit

Loud beeps with one command. The Active Buzzer Brick is a carrier for the KY-012 module from common 37-in-1 sensor kits: plug the module into the socket and connect one cable to a TinkerPie SENSOR port. A small CH32V003 processor on the brick does the timing work, so your program simply reads the result over I2C.

Features

• On / off / beep for N ms
• 5 V drive: full volume
• Alarms and timers
• Plug the kit module straight into the socket – no jumper wires
• One cable to any TinkerPie SENSOR port (I2C), BUS IN + BUS OUT to chain more bricks
• On-board CH32V003 does the timing – your code just reads the result

Specifications

How to use it with TinkerPie

1. Plug the KY-012 module into the 2.54 mm socket on the top edge. Match the pin names: the brick says S + -, the module has the same letters.
2. Connect BUS IN to any TinkerPie SENSOR 1-4 port with a 4-pin JST-PH cable (the same cable as the other sensors).

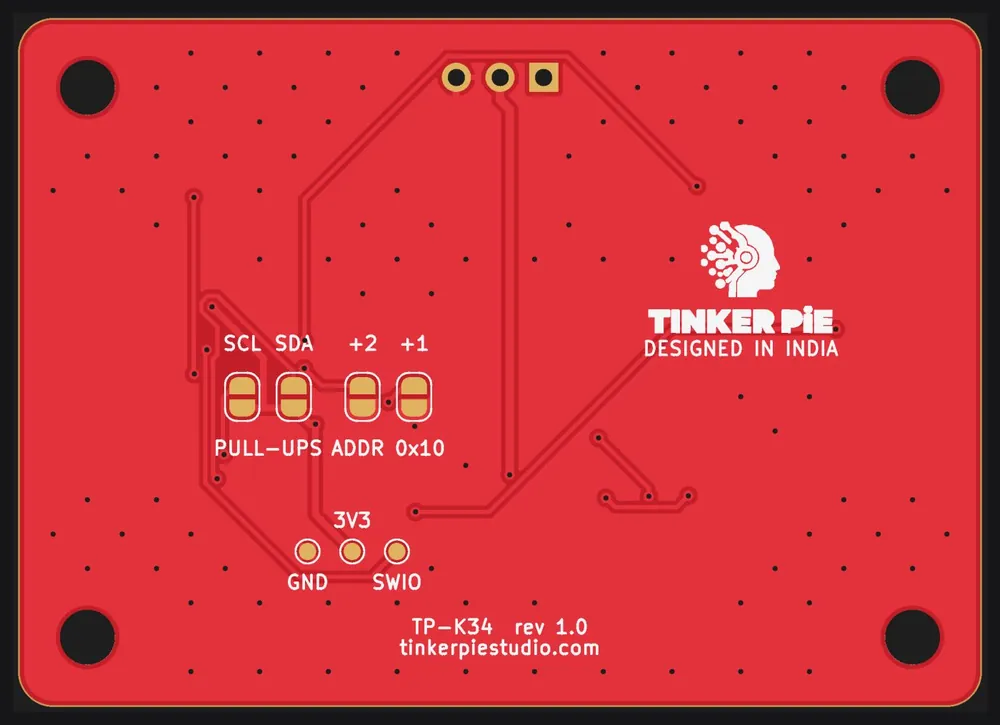

3. More bricks? Plug the next one into BUS OUT. Two bricks of the same type need different addresses: bridge ADDR +1, +2 or +4 on the back (0x10-0x13; the first is 0x10).
4. Install the TinkerPie and TinkerPieBricks Arduino libraries, open the quick-start sketch below, choose the board ESP32S3 Dev Module and upload.

Libraries: TinkerPie and TinkerPieBricks (Arduino IDE: Sketch → Include Library → Add .ZIP Library). Full guide: getting started with TinkerPie Bricks.

Quick start

Upload this, open the Serial Monitor at 115200 baud and watch the TinkerPie matrix.

// Active Buzzer Brick (TP-K34): quick start
// Reads the brick and shows the value on the TinkerPie matrix and in the Serial Monitor (115200 baud).
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitDrive out;

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!out.begin()) Serial.println("Active Buzzer Brick not found at 0x10: check the cable to SENSOR 1-4");
}

void loop() {
  out.on();                          // module on
  led::fill(Colors::Green);
  basic::pause(1000);
  out.off();
  basic::clearScreen();
  basic::pause(1000);
}

Project: SOS signal

Button A sends S-O-S in Morse code with the active buzzer: three short, three long, three short beeps.

// SOS signal: Active Buzzer Brick (TP-K34)
// Button A sends S-O-S in Morse code with the active buzzer: three short, three long, three short beeps.
#include <TinkerPie.h>
#include <TinkerPieBricks.h>
using namespace tinkerpie;

tpb::KitDrive bz;
void beep(int ms) { bz.pulse(ms); led::fill(Colors::Red); basic::pause(ms); basic::clearScreen(); basic::pause(150); }

void setup() {
  Serial.begin(115200);
  tinkerpie::begin();            // also starts the SENSOR ports (I2C bus Wire1)
  if (!bz.begin()) Serial.println("Active Buzzer Brick not found at 0x10: check the cable to SENSOR 1-4");
}

void loop() {
  if (input::buttonIsPressed(Button::A)) {
    for (int i = 0; i < 3; i++) beep(150);
    for (int i = 0; i < 3; i++) beep(450);
    for (int i = 0; i < 3; i++) beep(150);
  }
  basic::pause(20);
}
